Product Name£ºHigh Frequency Three Phase Online UPS 33RYY10KS

     Key Features

    ¡ôLCD High Frequency Double Conversion Sine Wave Online UPS 10KVA

    ¡ôDSP digital control technology, Zero transfer time (online mode to battery mode)

    ¡ôParallel up to 6 units for 10K long backup type

    ¡ôThree phase sine wave, output Power Factor 1

    ¡ôWide input voltage range -30% ~ +20%

    ¡ôWide input frequency range 40-70Hz

    ¡ôAdvanced Input PFC technology, 0.99

    ¡ôSupport Generator, output HZ be fixed or follow mains

    ¡ôWith Battery management feature, Adjustable battery numbers

    ¡ôBuilt-in protection against surges, spikes, sags, overload, over voltage, short circuit, over temperature, and other irregularities that are inherent in commercial utility power

    ¡ôRS232/USB communication with monitoring software, EPO optional

    ¡ôFloor stand cabinet for UPS and Battery cabinet

    ¡ôUPS (placed outside the battery cabinet)

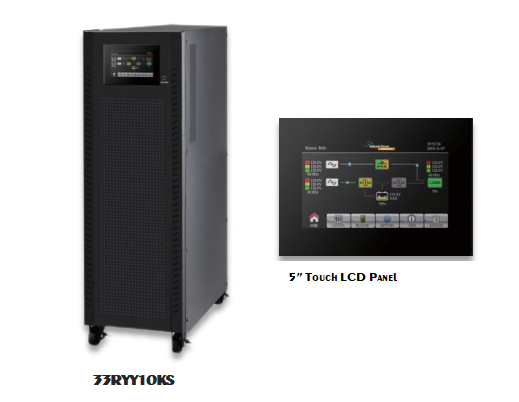

    ¡ôN+X PRC Function, SNMP 5¡± color touch type LCD display


     Technical Specifications


    Model

    33RYY10KS

    Phase

    3-phase in / 3-phase out

    Capacity

    10KVA/10KW

    Parallel Capacity

    6pcs

    Input

    Nominal Voltage

    4 wire, 380/400/415 VAC (3Ph+N) selectable

    Voltage range

    -30% ~ +20%

    Frequency range

    40~70Hz

    Inrush Current (max.)

    ¡Ü 1.5 times the rated input current

    Power Factor

    > 0.99 @ 100% Load

    Harmonic Distortion (THDi)

    < 3% at full linear load

    Output

    Voltage

    380/400/415 VAC (3Ph+N)

    AC Voltage Regulation (Batt. Mode)

    ± 1%

    Load Power Factor

    Unity or 1

    Nominal Frequency Stability

    50Hz or 60Hz

    Current crest ratio

    3:1(max)

    Harmonic Distortion

    ¨Q1 % THD (Linear Load) ; ¨Q3 % THD (Non-linear Load)

    Transfer Time

    Zero (online mode to battery mode) critical load stays supported by seamless power flow

    Waveform (Batt. Mode)

    Pure Sine wave

    Overload capability

    UPS withstand overload at a certain duration without transferring to bypass. 105-125% for 5 mins, 125-150% for 1 min ; >150% for 150ms

    Bypass







    Nominal Voltage

    3 x 360/380/400/415 VAC (3Ph+N)

    Voltage Range

    -30% ~ +20% (Adjustable)

    Frequency Range

    46~54Hz or 56~64Hz

    Capability

    Automatic UPS bypass that automatically transfers the load during overload or UPS failure. Support parallel technology to eliminate a single point of failure. Continuously working until breaker protection (optional)

    Battery

    Numbers

    20 x 12V, 40Ah (housed in an external freestanding cabinet)

    Capacity

    80% load for 60 minutes at 25C at start-up

    Charging Current (max.)

    1-12A Adjustable

    Charging Voltage

    +/-136.5 VDC ± 10%

    System Efficiency

    High Efficiency Mode: >98%; Double Conversion Mode: >94%

    LCD Panel Indicators

    UPS system status, Events/alarm logs Load level, Battery level, Input/ Output voltage, Discharge timer, and Fault conditions.
    Able to store and retrieve at least 200 events/alarm logs for reference and diagnosis

    Remote Monitoring & Integration Capabilities

    RS-232 / USB

    Supports Windows 2000/2003/XP/Vista/2008, Windows27/8/10, Linux and MAC

    Network / SNMP card (Built-in)

    Allows the UPS to connect directly to the Ethernet network and the Internet

    Communication slot

    To monitor, manage, and remotely shut down UPS across the network

    Operating Ambient temperature

    0¡æ~40¡æ (32 to 104°F) without derating

    Altitude

    0 ~ 1500m at full load

    Audible noise

    ¡Ü55dBa

    Storage temperature

    -15¡æ~45¡æ

    Work humidity

    20%~95%

    Noise (dB)

    Not greater than 55dBA

    UPS Dimension (W x D x H mm)

    250* 630*826

    UPS Net weight (kg)

    28kg

    (Battery Cabinet + Battery) Net weight (kg)

    276 kg
