MODE |
LFP256100-RM |
LFP512100-RM |
LFP48100-RM |
LFP512200-RM |
LFP48200-RM |
LFP512280-RM |
|
Battery Pack Module |
Rated Voltage |
25.6V |
51.2V |
48V |
51.2V |
48V |
51.2V |
|
Rated Capacity Ah |
100Ah ±3% |
100Ah±3% |
100Ah±3% |
200Ah±3% |
200Ah±3% |
280Ah±3% |
|
Rated Energy |
2.56KWH |
5.12KWH |
4.8KWH |
10.24KWH |
9.6KWH |
14.3KWH |
|
Cycle Life |
6000 times @ 80% DOC.25℃ |
|
Design Life time |
Over 15 years |
|
DOD |
> 95% |
|
IP Grade |
IP21, Indoor |
|
Communication |
RS232/RS485 / CAN communication interface to Inverter , RS4851/RS4852 For Parallel Communictaion . Option |
|

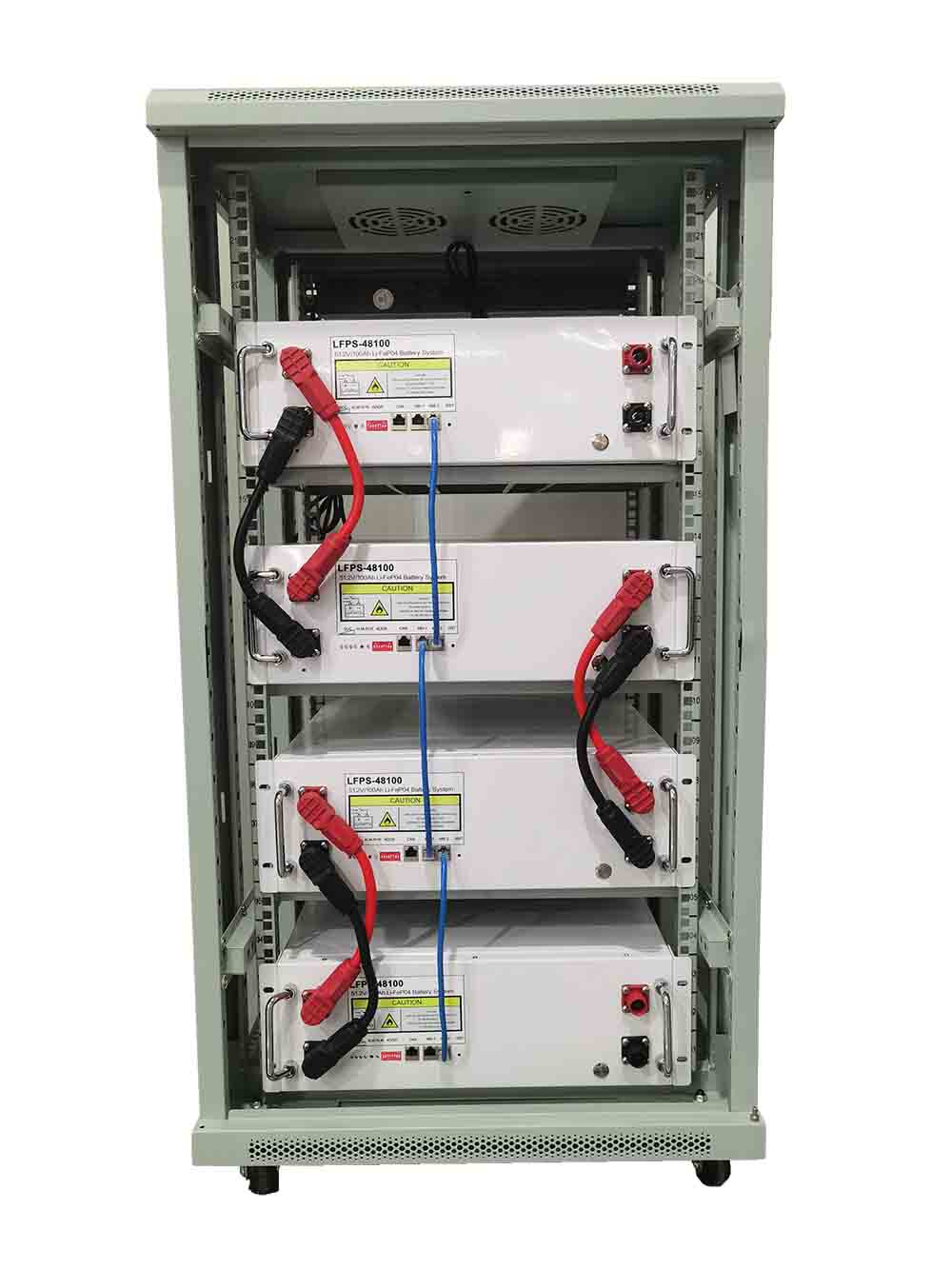

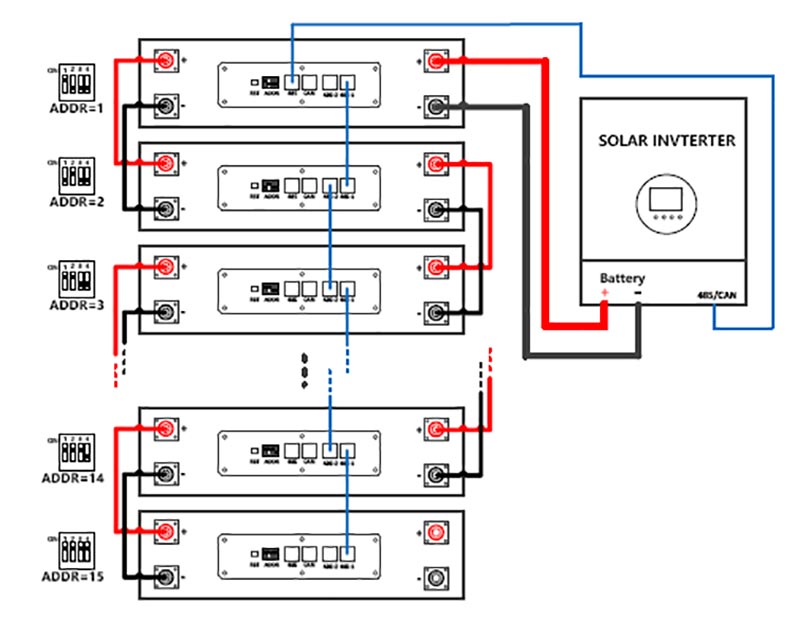

Parallel Connection |
Max 15PCS, recommend 2-8 PCS, Reserved Address portal ( DIP Switch/ ADDR ) . Option |
|
DC Output Connector |
M8 bolt |
|
Display |
LED |
Standby/charge/discharge/fault/ Capacity |
|
LCD |
Cell/Pack Vdc/ Amp/ Ah/Temp , BMS Status and also Parallel and System set |
|
Protection Function |
Over charge /Over Discharge/Over Temperature/ Over Current /internal Short Circuit protection and Balance Modular and Cell Charge and discharge ( Option ), by Embedded BMS |
|
Battery Pack Charge/Discharge
( Base on Kemapower 3KW/24VDC 5KW/48VDC Inverter. Customizable by customer） |
Recommended Charge Current |
50A |
50A |
50A |
100A |
100A |
140A |
|
Max. Continue Charge Current |
100A |
100A |
100A |
200A |
200A |
280A |
|
Recommended Charge Voltage |
28.2V |
56.4V |
52.9V |
56.4V |
52.9V |
56.4V |
|
Recommended Discharge Current |
50A |
50A |
50A |
100A |
100A |
140A |
|
Max. Continue Discharge Current |
100A |
100A |
100A |
200A |
200A |
280A |
|
Recommended Over Discharge Voltage |
22.4V |
44.8V |
42V |
44.8V |
42V |
44.8V |
|
Battery Cell |
Cell type |
Prismatic,LiFepo4 |
|
Rated Capacity Ah |
100Ah |
100Ah |
100Ah |
100Ah / 200Ah |
100Ah / 200Ah |
280Ah |
|
Rated voltage V |
3.2V |
3.2V |
3.2V |
3.2V |
3.2V |
3.2V |
|
Pack Connection |
8S1P |
16S1P |
15S1P |
16S2P/16S1P |
15S2P/15S1P |
16S1P |
|
BMS Parameter (Customizable) |
Charge method |
CC To 3.65V, CV to 0.05C and then Cut off |
|
Max Pulse Charge Current |
120% * Max. continue Charge Current |
|
Over charge Protection voltage |
29.2V |
58.4V |
54.8V |
58.4V |
54.8V |
58.4V |
|
Over Charge Voltage Return |
27.6V |
55.2V |
51.8V |
55.2V |
51.8V |
55.2V |
|
Max Pulse Discharge Protection Current |
300% * Max. Continue Discharge Current |
|
Over Discharge Protection Voltage |
16A |
32V |
30V |
32V |
30V |
32V |
|
Over Discharge Return Voltage |
20V |
40V |
37.5V |
40V |
37.5V |
40V |
|
Over current protection delay time |
20 ±5 ms |
|
Short protection delay time |
200-600 us. |
|
Reset For BMS |
yes. Inclued the RST switch. Wakeup function |
|
Battery Standard |
IEC62619, CE, UN38.3, MSDS |
|
Installation |
RACK/Ground, |
|
Operation temperature |
-20-60℃ |
|
Storage Temperature |
0-45℃ |
|
Product Size ( Around mm) Customizable |
420*443*134 |
442*439.7*165 |
442*439.7*165 |
474*468.6*235 |
474*468.6*235 |
474*468.6*235 |
|
Product Weight ( Around Kg) |
26 |
41.2 |
39.5 |
80 |
77 |
111.7 |
