| Product Name： | Lead-acid alternative Lithium Battery LFP-ABS 12V |
◆ 12VDC Deep Cycle Energy storage Lead-acid alternative LiFePo4 lithium battery
◆ Capacity 12.8VDC 6Ah,10Ah,12Ah,18AH,20AH,36AH,50Ah,100AH,200AH
◆ 6000 Cycle life(80% DOD@25℃), 10 times more than AGM battery
◆ Discharge DOD over 95%, 25-50% more than AGM battery
◆ Compact Size and light weight , > 50% smaller and lighter than AGM battery
◆ Wide Compatibility, Cooperate With Most Inverters
◆ Embedded BMS , Full protection and Balance charge discharge
◆ LCD Display option
◆ Bluetooth communication option
◆ Series connection option . Max to 48VDC |

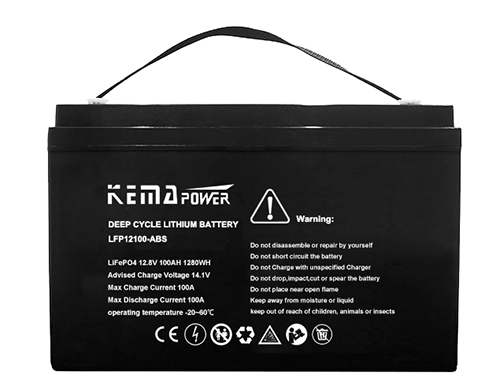

LFP12100-ABS |
|

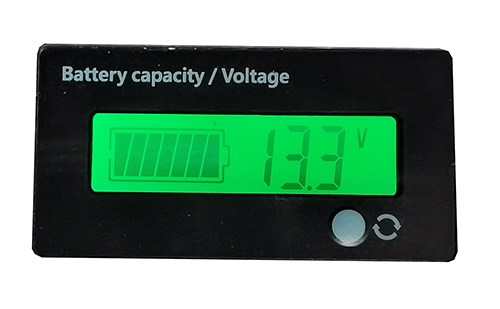

LCD DISPLAY OPTION |

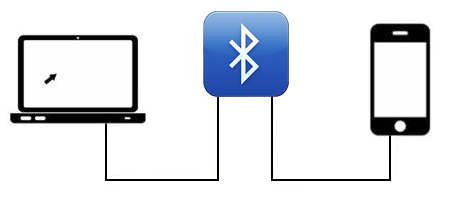

Bluetooth Communicatiion ( Option ) |
|
MODE |
LFP12006-ABS |
LFP12010-ABS |
LFP12012-ABS |

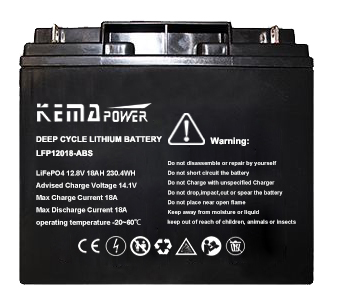

LFP12018-ABS |

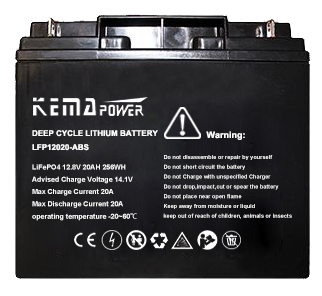

LFP12020-ABS |
LFP12036-ABS |

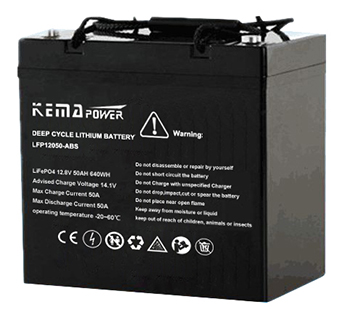

LFP12050-ABS |
LFP12100-ABS |

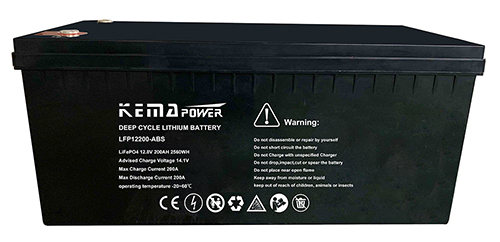

LFP12200-ABS |
|
Battery Pack Module |
Rated Voltage |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
12.8VDC |
|
Rated Capacity Ah/WH |
6AH |
10AH |
12AH |
18AH |
20AH |
36AH |
50AH |
100AH |
200AH |
|
Rated Energy |
76.8WH |
128WH |
153.6WH |
230.4WH |
256WH |
460.8WH |
640WH |
1280WH |
2560WH |
|
Cycle Life |
1C 100% DOD Charge/Discharge, after 3000 Times, Cap. Retention*≥80%, .25℃ . 6000 Cycle under 80% DOD Charge/Discharge, reach 6000 Cycle |
|
Design Life time |
Over 10 years |
|
DOD |
> 95% |
|
IP Grade |
IP65 Indoor |
|
Case and Output Connector |
ABS ,T2 bolt |
ABS ,T2 bolt |
ABS ,T2 bolt |
ABS ,M5 bolt |
ABS ,M5 bolt |
ABS ,M6 bolt |
ABS ,M6 bolt |
ABS ,M8 bolt |
ABS ,M8 bolt |
|
Load Capacity |
≤80W |
≤130W |
≤160W |
≤235W |
≤260W |
≤465W |
≤640W |
≤1280W |
≤2560W |
|
internal resistance |
≤150mΩ |
≤100mΩ |
≤100mΩ |
≤80mΩ |
≤80mΩ |
≤70mΩ |
≤60mΩ |
≤40mΩ |
≤30mΩ |
|
Protection Function |
Over charge /Over Discharge/Over Temperature/ Over Current /internal Short Circuit protection and Balance Modular and Cell Charge and discharge ( Option ), by Embedded BMS |
|
Battery Pack Charge/Discharge
(Customizable) |
Recommended Charge Current |
≤6A |
≤6A |
≤12A |
≤20A |
≤20A |
≤30A |
≤20A |
≤20A |
≤40A |
|
Max. Continue Charge Current |
6A |
10A |
12A |
18A |
20A |
36A |
50A |
100A |
200A |
|
Recommended Charge Voltage |
14.1V |
14.1V |
14.1V |
14.1V |
14.1V |
14.1V |
14.1V |
14.1V |
14.1V |
|
Recommended Discharge Current |
3A |
5A |
6A |
9A |
10A |
18A |
25A |
50A |
100A |
|
Max. Continue Discharge Current |
6AMP |
10AMP |
12AMP |
18AMP |
20AMP |
36AMP |
50AMP |
100AMP |
200AMP |
|
Recommended Over Discharge Voltage |
11.2V |
11.2V |
11.2V |
11.2V |
11.2V |
11.2V |
11.2V |
11.2V |
11.2V |
|
Battery Cell |
Cell type |
LiFepo4 |
|
Rated Capacity Ah |
6AH |
5AH |
4AH |
6AH |
5AH |
6AH, |
50AH |
50AH |
50AH |
|
Rated voltage V |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
3.2VDC |
|
Pack Connection |
4S1P |
4S2P |
4S3P |
4S3P |
4S4P |
4S6P |
4S1P |
4S2P |
4S4P |
|
BMS Parameter (Customizable) |
Charge method |
CC To 3.65V, CV to 0.05C and then Cut off |
|
Max Pulse Charge Current |
120% * Max. continue Charge Current |
|
Over charge Protection voltage |
14.1V |
14.6V |
14.6V |
14.6V |
14.6V |
14.6V |
14.6V |
14.6V |
14.6V |
|
Over Charge Voltage Return |
13.8V |
13.8V |
13.8V |
13.8V |
13.8V |
13.8V |
13.8V |
13.8V |
13.8V |
|
Max Pulse Discharge Protection Current |
300% * Max. Continue Discharge Current |
|
Over Discharge Protection Voltage |
8V |
8V |
8V |
8V |
8V |
8V |
8V |
8V |
8V |
|
Over Discharge Return Voltage |
10V |
10V |
10V |
10V |
10V |
10V |
10V |
10V |
10V |
|
Over current protection delay time |
20 ±5 ms |
|
Short protection delay time |
200-600 us. |
|
LCD Display / Bluetooth Communicatiion ( Option ) |
LCD Display , WiFi Communicaitoin by App or PC |
|
Series connection ( Option ) |
LPF Litepo4 battery Series and Parallel Connectioin Function is option . Max 4 pcs in series @ 12VDC . |
|
Battery Standard |
IEC62619, CE, UN38.3, MSDS |
|
Operation temperature |
-20-60℃ |
|
Storage Temperature |
0-45℃ |
|
Product Size ( Around mm) Customizable |
101*90*70 |
151*65*94 |
151*98*95 |
181*77*167 |
181*77*167 |
198*166*170 |
229*138*208 |
330*173*220 |
522*240*218 |
|
Product Weight ( Around Kg) |
0.7kg |
1.2kg |
1.4kg |
2.1kg |
2.3kg |
3.3kg |
6kg |
12.5kg |
25kg |
|
LFP12006-ABS |

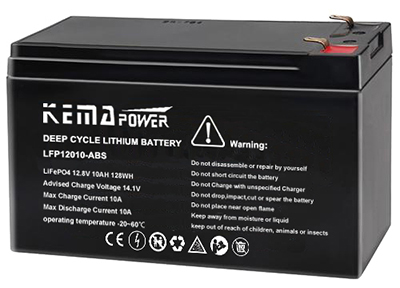

LFP12010-ABS |

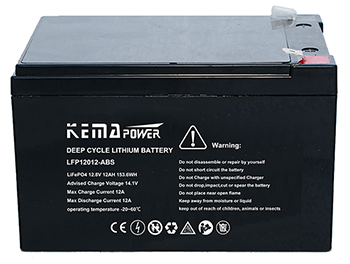

LFP12012-ABS |
LFP12018-ABS |
LFP12020-ABS
|
|

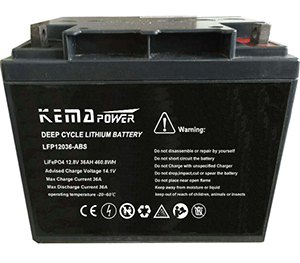

LFP12036-ABS |
LFP12050-ABS |
LFP12100-ABS |
LFP12200-ABS
|
|

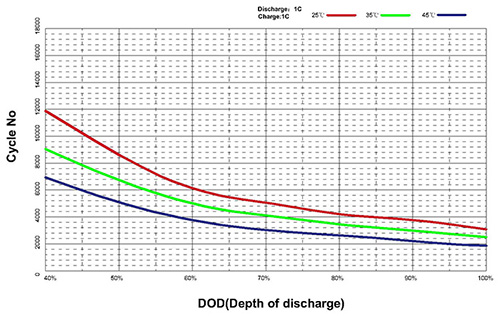

Cycle life vs DOD at different temperature
 |

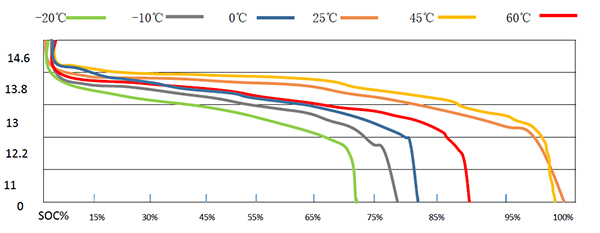

0.5C multiplier discharge curve at different temperatures
|
|

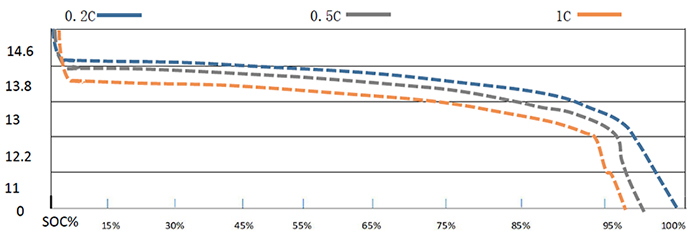

Discharge curve at different magnification (25℃)
|

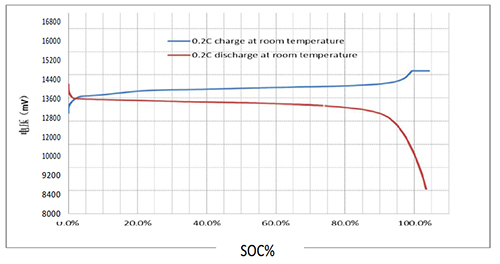

0.2C charge/discharge curve at room temperature (25℃)
 |

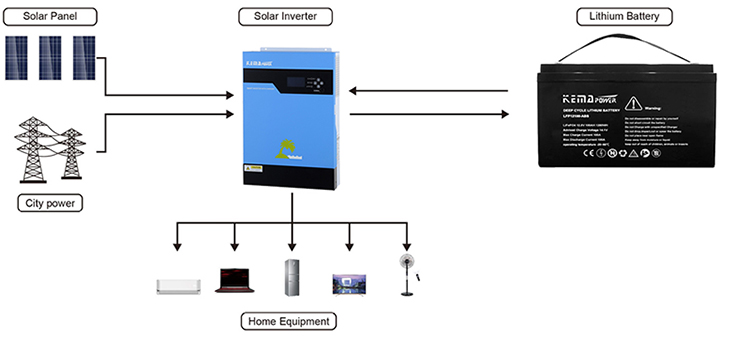

| ELSE APPLICATION |
| RV Car, Marine, Golf Car, Buggies,Remote Monitoring, Switching applications and more,UPS |
|
|
|
