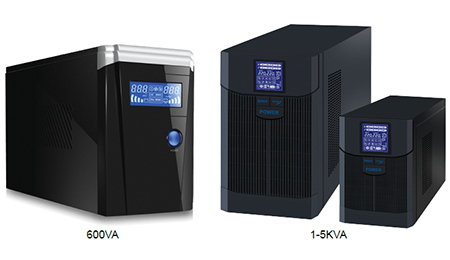

Model

ZYLW600(S)

ZYLW1K(S)

ZYLW1.5K(S)

ZYLW2K(S)

ZYLW3K(S)

ZYLW5K(S)

Rated Capacity

600VA

1KVA

1.5KVA/

2KVA

3KVA

5KVA

360W

  800W

 1200W

 1.6KW

 2.4KW

 4KW

Input

Rated Voltage

110V or 220(1±8%) ± 7VAC

input Range

145-275Vac or  70-140V ±5V

Frequency

45~65Hz

Output

Voltage

220V/110V±10% under Line mode   , 220V/110V ±5% Under Bat mode

Frequency

50± 1% Hz / 60± 1% Hz (Auto sensing)

Power factor

600VA PF0.6 , 1-5KVA PF0.8

Waveform

Pure sine wave

Overload capability

110% shut down within 60secs,  120% shut down within 5secs.

Current Crest Ratio

3:1

Harmonic distrotion

3% THD( Line load ), 6% THD (non-linear load)

Protection

Over Voltage; Low-Voltage; Short Circuit, Over Temp, Over load,  Low Battery Voltage

DC voltage

12VDC

24VDC

24VDC

24VDC

48VDC

1K-5K  Internal bat

Charge Current

1.5A/3A OPTIONAL

Battery number

1*7AH

2*7AH

2*9AH

4*7AH

4*9AH

4*17AH

1KS-5KS External bat

Charge Current

10A/20A OPTIONAL

5A/10A OPTIONAL

Battery

External

Recharge time

5-6 hours to 90%

Transfer Time(ms)

Typical 2-6ma, Max 10MS

Alarm

, Bat mode 4 times/Mins, battery low,UPS beeping once second,Overload, battery Fault

Communication Interface

Acquiescent RS232 communication  , USB and SNMP Communication option

Surge protection

yes

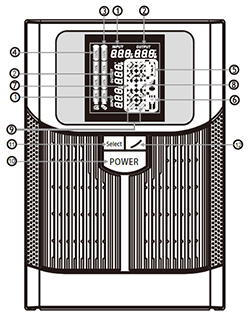

Display

LCD

IP/OP VAC  HZ, BAT VDC % , LOAD % W , BAT LINE BYPASS MODE,℃

Noise level

≤40dB(1m)

Humidity

20 to 90% non condensing

Enviroment

Temperature 0℃-40℃

Product weight

N.W, SL0.6-5K

4.8

9

12.1

22.5

24.5

30

N.W, SL0.6-5KS

3.8

6

8.1

17.3

20.6

26

Product size

SL0.6-5K

305*85*141

384*122*192

375*192*330

585*192*330

SL0.6-5KS

305*85*141

345*122*192

455*195*330

REMARK

ZYLW--- Internal battery, ZYLW-S----External battery
