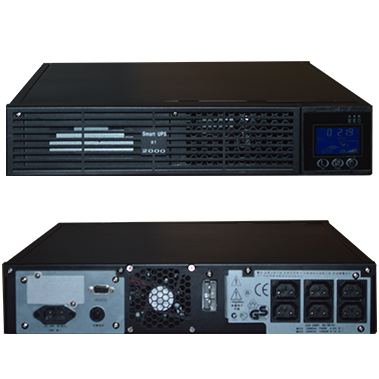

| Product Name： | Rack Online-Interactive UPS RZDLW 750-5KVA |
◆ Rack Mounting Low frequency online-interactive sine wave 750-5KVA
◆ Output PF 0.8, Sine wave output with AVR function
◆ Hot replace battery,Temperature compensation charger
◆ Auto transfer, the typical transfer time 4Ms
◆ Silence function, Self-testing and cold starting function
◆ Unattended management function
◆ Lightning, surge,overload and short-circuit protection
◆ RS232 communication,USB and SNMP Communication option
◆ External Bat port option for the internal battery Standard type |
 |
|
Model |
RZDLW750(S) |
RZDLW1K(S) |
RZDLW1.5K(S) |
RZDLW2K(S) |
RZDLW3K(S) |
RZDLW5K(S) |
|
Rated Capacity |
750VA/600W |
1000VA/800W |
1500VA/1200W |
2000VA/1.6KW |
3000VA/2.7KW |
5KVA/4KW |
|
Input |
Voltage |
140-280V or 70-140V ±5V |
|
Frequency |
45~65Hz |
|
Output |
Voltage |
220V or 110V , ±5-10% adjustable under AC Mode |
|
Frequency |
50/60±0.5HZ |
|
Waveform |
sine wave |
|
Socket |
4 IEC 320 C13 |
4 IEC 320 C13 |
4 IEC 320 C13 |
8 IEC 320 C13+
1 IEC 320 C19 |
8 IEC 320 C13+
1 IEC 320 C19 |
2 IEC 320 C19+8 IEC 320 C13 |
|
Current Crest Ratio |
|
3:1 |
|
Harmonic distrotion |
|
3% THD( Line load ), 6% THD (non-linear load |
|
Protection |
Over Voltage; Low-Voltage; Short Circuit, Over Temp, Over load, Low Battery Voltage |
|
RZDLW 750-5K Internal Bat type DC voltage |
24VDC |
|
RZDLW 750-5kS External Bat type DC voltage |
24VDC |
|
Charge Current |
1K-5K |
Max 3Amp |
|
1KS-5KS |
Max 8AMP(default value 3AMP） |
|
Battery |
Battery Type |
Valve controlled maintenance free sealed lead-acid battery |
|
|
RZDLW 750-5K |
2*12V/7AH |
2*12V/7AH(Option 3*12V/7AH) |
2*9AH or 4*7AH |
4*7AH 9Ah or 6*7AH/12VDC |
6*7AH/12VDC |
4*17Ah/12VDC |
|
RZDLW 750-5kS |
24V External |
24V or 36V External |
24V / 48VDC External |
48V / 72V or 96VDC External |
48V/72V/96VDC External |
48VDC External |
|
Recharge time |
1K-3K |
5-6 hours to 90% |
|
Transfer Time(ms) |
Typical 4MS,Max 10MS |
|
Overload Protection |
120%-150% 10 seconds,150% load hold 1 second |
|
Alarm |
Bat mode 4 times/Mins, battery low,UPS beeping once second,Overload, battery Fault |
|
Communication Interface |
Acquiescent RS232 communication , USB and SNMP Communication option |
|
Display |
LED |
Line,Battery,Fault,Battery Rate,Load Rate |
|
LCD |
IP/OP VAC HZ, BAT VDC % , LOAD % W , BAT LINE BYPASS MODE,℃ |
|
Product size |
WxDxH (mm) |
484 * 450 * 88 (2U) |
484 * 450 * 88 (2U) |
484 * 450 * 88 (2U) |
483 * 702 * 88 (2U) |
483 * 702 * 88 (2U) |
483*660*220 (5U) |
|
Product Weight Kg |
15.2(2*7AH)/12.5 |
16.2(2*7AH)/13.5 |
18.5(2*9AH)/14.5 |
26.6(4*7Ah)/18.6 |
31.7(6*7Ah)/20.5 |
77(4*17AH)/31 |
|
REMARK |
RZDLW*K --- Standard Type, RZDLW*KL---- Long Time Type. |
|

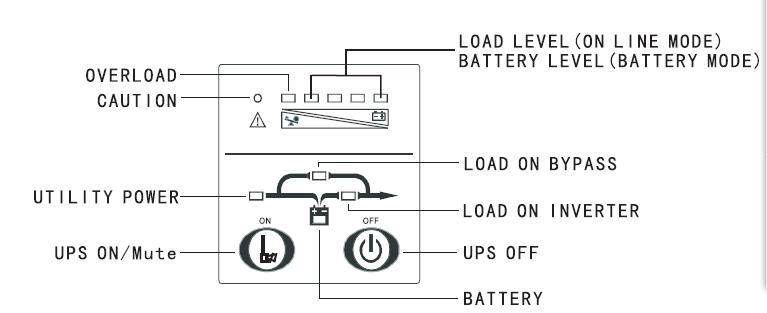

DISPLAY MODE PANEL |

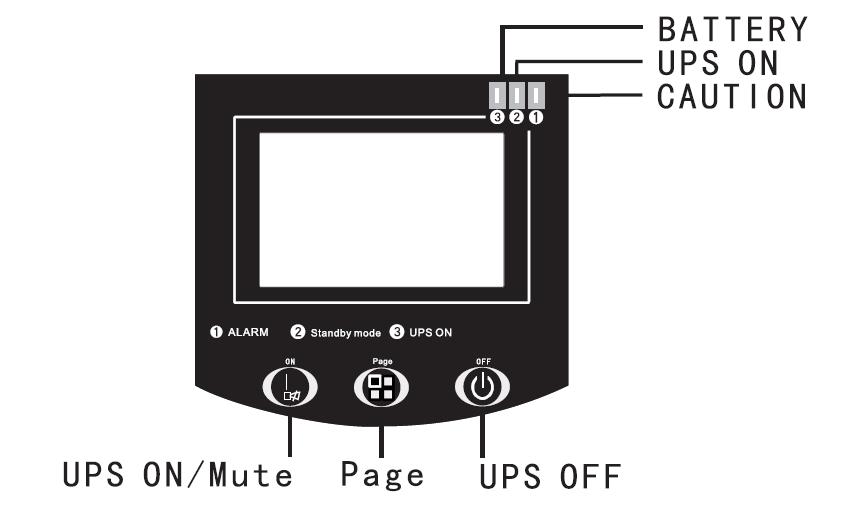

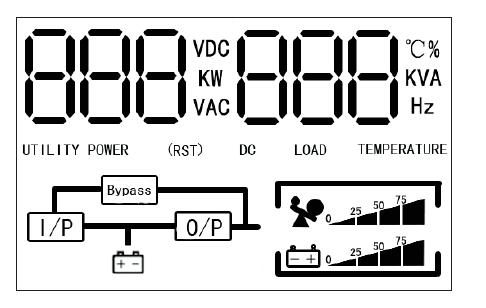

LCD Mode Display |
LCD Mode Display |
|
|
|
