Item

Model (ST)

5000TL+

6000TL+

8000TL+

10000TL+

12000TL+

15000TL+

20000TL+

30000TL+

Input (DC Side)

Max. DC Input Power

5000W

6600W

9000W

11200W

13300W

16500W

22000W

33000W

Max. DC Voltage

900Vdc

1000Vdc

Start Voltage

250Vdc

MPPT Operating Range

250~720Vdc

250~800Vdc

Number of  Inputs

2

4

6

Number of MPPT

2

3

Max. Input Current

2*10.5A

2*11A

2*18A

3*20A

Output(AC Side)

Nominal Output Power

5000W

6000W

8000W

10000W

12000W

15000W

20000W

30000W

Max. Output Power

5000W

6000W

8000W

10000W

12000W

15000W

20000W

30000W

Rated Output Current

7.3A

8.7A

11.6A

15.2A

16A

22.7A

30.2A

43.0A

Max. Output Current

7.9A

9.5A

12.7A

16.0A

16A

25A

33.3A

48A

Nominal AC Output Voltage

400Vac

AC Output Voltage Range

360~440Vac

AC Grid Frequency Range

50/60±5Hz

Power Factor

0.8(leading)~0.8(lagging)

THDI

<3%

Efficiency

Max Efficiency

97.60%

97.80%

98.10%

98.10%

98.10%

98.10%

98.20%

98.20%

Euro Efficiency

97.10%

97.30%

97.30%

97.50%

97.60%

97.50%

97.60%

97.60%

MPPT Efficiency

99.60%

99.60%

99.60%

99.60%

99.60%

99.60%

99.60%

99.60%

General Data

Operating Temperature

  -25℃~+60℃

Noise (typical)

≤25dB (A)

≤50dB (A)

≤25dB (A)

Consumption at night

〈1W

Electrical Isolation

Transformerless

Cooling Concept

Natural cooling

Degree of Protection

IP65

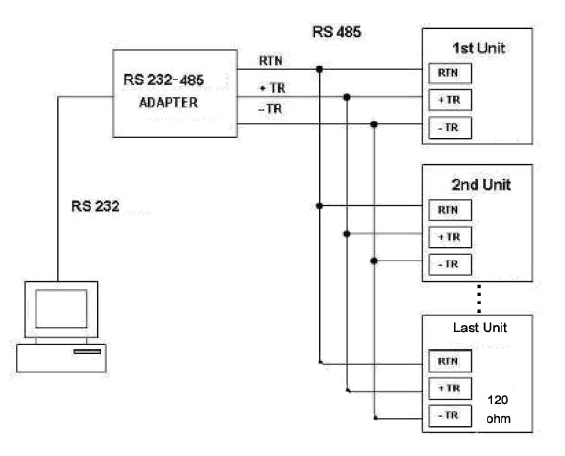

Communication:RS232/

yes/opt

RS485/WIFI/GPRS

opt/opt

Dimension (W*D*H mm)

355*180*450

410*210*528

470*259*608

470*260*785

Weight (kg)

18

26

42

45

54

REMARK

AC grid voltage range and frequency range depend on local standards.
