| Product Name： | Street Light / Solar Street Light ML50W--300W |
| Key Features |
|

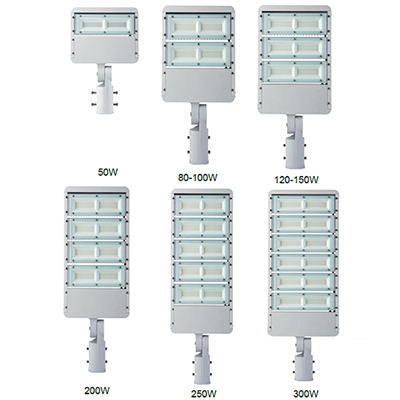

◆ LED Street lamp ML50/80/100/120/150/200/250/300W
◆ Module design,independent connection,easy to divide and combine
◆ 160 degrees adjustable angle
◆ Die-cast aluminum, housing with fins cooling design,low temperature,long life
◆ High transmittance,high quality tempered glass
◆ Philips lumen:>130 lm / W, lifespan > 50000 hours
◆ All cables with rubber tubes ,copper core .excellent electrical properties
◆ Waterproof: IP66, Warranty 3/5 years
|
 |
|
|
Model No. |
ML-50W |
ML-80W |
ML-100W |
ML-120W |
ML-150W |
ML-200W |
ML-250W |
ML-300W |
|
Rated Power |
50W |
80W |
100W |
120W |
150W |
200W |
250W |
300W |
|
Alternating Current |
1.8A/115VAC ; 1.2A/230VAC ; 1.0A/305VAC |
|
Input Voltage |
AC85-277V or 12/24VDC |
AC85-277V |
|
Frequency |
50-60Hz |
|
Power Factor |
>0.96 |
|
THD |
THD<10% （@electrical load≧50%/115VC, 230VAC; @electrical load≧75%/277VAC) |
|
LED |
Philips SMD3030 Chip |
|
Chip Quantity |
60PCS*1 |
60PCS*2 |
60PCS*3 |
60PCS*4 |
60PCS*5 |
60PCS*6 |
|
LED Driver |
CE standard driver |
|
Driver Quantity |
1 |
2 |
|
Structure |
Detachable modular, fins cooling design |
|
Lamp efficiency |
≥ 130lm/W |
|
CRI |
Ra ≥ 80 |
|
Color Temperature |
2700-6500K |
|
Material |
Aluminumm+Toughened glass |
|
Beam angle |
160 degree |
|
Surge Protection |
4KV |
|
Working temperature |
-60℃ ~ +50 ℃ |
|
IP Rating |
IP66 |
|
Installation DIA |
Φ65mm |
|
Certificate |
CE,ROHS,EMC,ISO9001 |
|
Warranty |
3/5 years |
|
Product size (mm) |
450*285*80 |
540*285*80 |
630*285*80 |
720*285*80 |
820*285*80 |
900*285*80 |
|
Packaging size(mm ) |
455*300*120 |
545*300*120 |
630*300*120 |
725*300*120 |
820*300*120 |
910*300*120 |
|
CTN KG |
3.07 |
4.1 |
5 |
6 |
7.5 |
8.3 |
|
|
  |
|
|

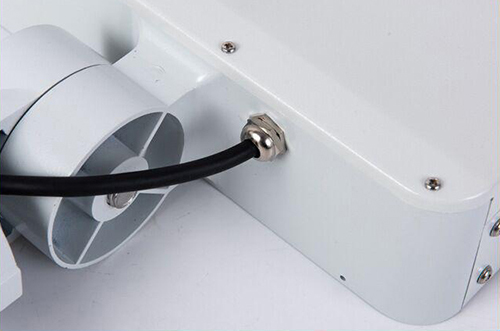

Adjustable Angle, Excellent Electrical Properties |

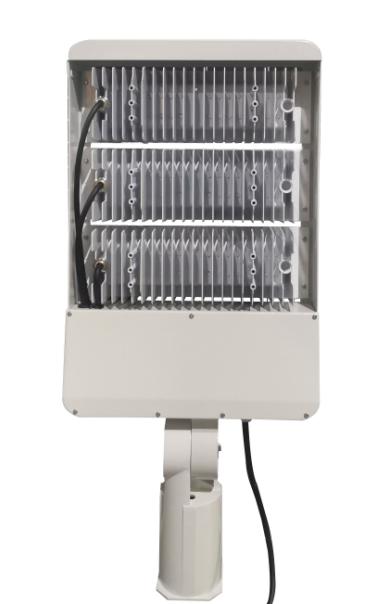

Fins Cooling Design,Low Temperature,Long Life |
IP66, Module Design |
|
|
|
