Kema Electric Co.,ltd.

Product Name：

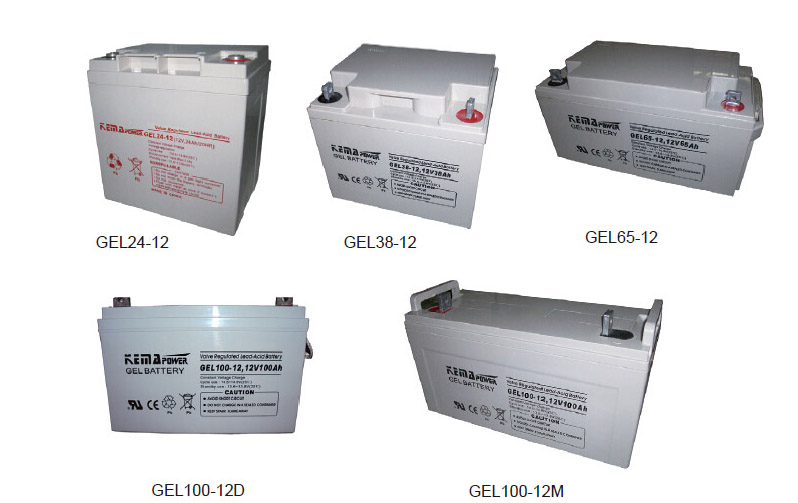

Deep Cycle Solar Battery 12VDC GEL Series

Features

◆The primary material is gas silicon dioxide from import.
◆Fully sealed:with cover and pole double seal design to prevent leakage of electrolysis,the reliability of safe-vale prevent oxygen and dust from outside enter into battery.
◆Free maintenance: with the performance of water reproduce and high sealed reaction efficiency,it no needs any compensation of and water during ues.
◆Safety: without acid leaked,reliable gas pressure venting system and equipped with anti-explosion device,which make the battery safer during use.
◆Long cycle life: anti-erosion pb-ca multi-alloy,ABS plastic materical and high sealed reaction efficiency assurethe resden batttery’s service life.
◆Temperature adaptability: the battery can be used safely during -25-50℃.
◆Convenient and safety: the battery has charged with load befor leaving the factory,without free electrolysis,it allowed to be placed breadthways and transported by sea and railway as nonhazardous material.
◆Economical: with high perforamce,long service life and lowest maintenance cost to offer consumers the most economical procucts.

Application:

◆Solar / wind energy system
◆Communication system
◆Broadband
◆UPS
◆Power Tools
◆Cable TV
◆Alarm system
◆Emergency power system
◆Control equipment
◆Photovoltaic
◆Electric Powered Vehicles
◆Marine equipment
◆Vacuum Cleaners
◆Golf Cars and Buggies
◆Electric Wheel Chairs

Technical Specification

BATTERY MODEL	Voltage	Capacity	Resistance	Charge Voltage (VDC)		Charge Current	Product Size (MM)				Product weight	Terminal type
BATTERY MODEL	(VDC)	(Ah)	(m∩)	Equalization and Cycle	Float	Maximum Amp	L	W	H	T/H	KG	Terminal type
GEL24-12	12	24	≦13	14.4-15	13.65	6Amp	166	125	175	182	8.00	M6
GEL26-12	12	26	≦11	14.4-15	13.65	7.5Amp	166	125	175	182	8.50	M6
GEL38-12	12	38	≦10	14.4-15	13.65	9.5Amp	197	165	170	182	12.00	M6
GEL40-12	12	40	≦8	14.4-15	13.65	12Amp	197	165	170	182	12.00	M6
GEL55-12	12	55	≦6.5	14.4-15	13.65	14Amp	227	138	206	228	17.20	M6/L-6
GEL65-12	12	65	≦6.1	14.4-15	13.65	16.25Amp	350	166	178	178	21.00	M6
GEL100-12D-15	12	100	≦5	14.4-15	13.65	25Amp	330	173	220	240	27.00	M8
GEL100-12D-17	12	100	≦5	14.4-15	13.65	25Amp	330	173	220	240	28.50	M8
GEL100-12M	12	100	≦4.4	14.4-15	13.65	25Amp	407	174	238	238	31.00	M8
GEL120-12-15	12	120	≦4	14.4-15	13.65	25Amp	407	174	238	238	33.00	M8
GEL150-12-15	12	150	≦3	14.4-15	13.65	35Amp	485	171	241	241	37.00	M8
GEL150-12-17	12	150	≦3	14.4-15	13.65	35Amp	485	171	241	241	43.00	M8
GEL200-12-15	12	200	≦3	14.4-15	13.65	50Amp	520	240	224	244	57.00	M8
GEL200-12-17	12	200	≦3	14.4-15	13.65	50Amp	520	240	224	244	63.00	M8
GEL230-12	12	230	≦1	14.4-15	13.65	55Amp	520	269	203	203	67.00	M8
Note 1.10 year Service life，ABS shell. 2.the rate capaticy (10 rate hour)is the average tested by several times at 25℃ 3.the total height of battery includes the terminal. 4.it is to be noted that all these parameters are subject to change without notice.
