Mode

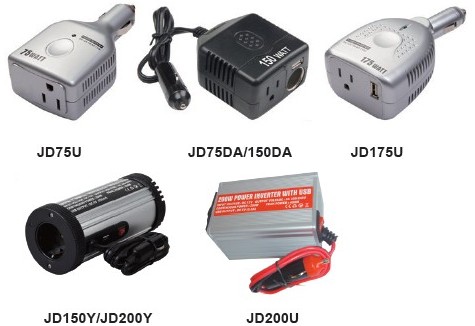

JD 75U

JD75DA

JD150Y

JD150DA

JD175U

JD200U

JD200Y

Continuous power (W)

75

150

150

150

175

200

200

Surge capability (W)

150

300

300

300

350

400

400

DC input (VDC)

12V

DC input range

10.5V to 15.5V±0.3

AC output

220V,110V ±10 V

Output frequency

50/60±5 HZ

Output waveform

Modified sine wave

Efficiency

>85%

Battery low alarm

10.2-10.8V

Over discharge protection

10 ±0.5V, shut off

Resume voltage

11.7V--12.8V ,auto restart

Over voltage protection

15V-16.5V ,shut off.

Overload protection

Shut off while over 120% rated capacity

With cooling fan

Yes

USB

Yes

DC conection

Cigarette lighter

Connection convertor

No

Product package

Blister

Running temperature

20 to 40 degree

High temperature protection

Yes

Short circuit protection

Yes

Reverse polarity protection

Yes

Product size(mm)

115*57.5*37

145*75*50

Φ70*145

145*75*50

141*, 74*50

100*67*43

Φ70*145

Carton size (mm)

475*290*570

515*355*370

440*410*360

515*355*370

540*390*375

475*290*570

440*410*360

Carton weight (kg)

12

13

14

13

11

16

14

PCS /CTN

50

40

30

40

40

40

30
