Product Name：

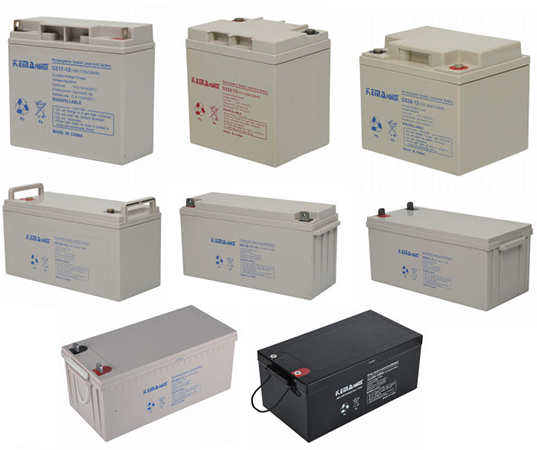

AGM VRLA 12VDC BATTERY GS 4.5-230Ah

Features

◆ Fully Sealed: With cover and pole double seal design to prevent leakage of electrolysis, and the reliability of safe-vale prevent oxygen and dust from outside entering the battery.
◆ Free of Maintenance: With the performance of water reproduce and high sealed reaction efficiency, it does no need any compensation of and water during use.
◆ Safety: No acid leaked, reliable gas pressure venting system and equipped with anti-explosion device, which make the battery safer during use.
◆ Long Cycle Life: Anti-erosion pb-ca multi-alloy, ABS plastic materical and high sealed reaction efficiency to assure the battery's service life.
◆ Temperature Adaptability: The battery can be used safely during -25-50℃.
◆ Convenient and Safety: The battery has charged with load before leaving the factory, without free electrolysis, it allowed to be placed breadthways and transported by sea and railway as nonhazardous material.
◆ Economical: With high performance, long service life and lowest maintenance cost to offer consumers the most economical products.

Application

1.UPS
2.Power Tools
3.Cable TV
4.Alarm System

5.Emergency Power System
6.Control Equipment
7.Photovoltaic
8.Electric Powered Vehicles

9.Marine Equipment
10.Vacuum Cleaners
11.Golf Cars and Buggies
12.Electric Wheel Chairs

Technical Specifications

BATTERY MODEL	Voltage	Capacity	Resistance	Product Size (MM)				Product Weight	Terminal Type
BATTERY MODEL	(VDC)	(Ah)	(m∩)	L	W	H	T/H	KG	Terminal Type
GS12-4.5	12	4.5	≦50	90	70	106	106	1.45	F1
GS12-7	12	6.5	≦45	151	65	94	94	2.00	F2
GS12-7.2	12	7.2	≦40	151	65	94	94	2.20	F2
GS12-9A	12	9	≦35	151	65	94	94	2.50	F2
GS12-9B	12	9	≦35	151	65	94	94	2.30	F2
GS12-12	12	12	≦30	151	99	94	94	3.70	F2
GS12-18B	12	17	≦ 16	181	76	166	166	5.50	L-6
GS12-18	12	18	≦ 15	181	76	166	166	5.50	L-6
GS12-24	12	24	≦ 13	166	125	175	182	8.00	M6
GS12-26	12	26	≦ 11	166	125	175	182	8.50	M6
GM12-38	12	38	≦ 10	197	165	170	182	12.00	M6
GM12-40	12	40	≦8	197	165	170	182	12.00	M6
GM12-55	12	55	≦6.5	227	138	206	228	17.20	M6/L-6
GM12-65	12	65	≦6.1	350	166	178	178	21.00	M6
GM12-100D-15	12	100	≦5	330	173	220	240	27.00	M8
GM12-100D-17	12	100	≦5	330	173	220	240	28.50	M8
GM12-100M	12	100	≦4.4	407	174	238	238	31.00	M8
GM12-120-15	12	120	≦4	407	174	238	238	33.00	M8
GS12-150-15	12	150	≦3	485	171	241	241	37.00	M8
GS12-150-17	12	150	≦3	485	171	241	241	43.00	M8
GS12-200-15	12	200	≦3	520	240	224	244	57.00	M8
GS12-200-17	12	200	≦3	520	240	224	244	63.00	M8
GS12-250(230)	12	230	≦ 1	520	269	203	203	67.00	M8

Note: 1. The rate capaticy (10 rate hour)is the average tested by several times at 25℃.
2. The total height of battery includes the terminal.
3. "L" terminaldenotes quardrate terminal and postifix "o" terminal denotes cylindrcal terminal.
4. It is to be noted that all these parameters are subject to change without notice.

watts to F.V 1.70 volts per cell
type time	5min	10min	15min	30min	45min	60min	120min	180min
GS12-4	28.7	23.0	16.6	10.0	7.0	5.6	3.0	2.2
GS12-7	46.6	31.1	25	13.9	10.3	8	4.77	3.38
GS12-9	62.8	42.1	31.1	18	13.4	10.6	5.96	4.12
GS12-12	75.3	50.5	37.3	21.6	16.1	12.7	7.15	4.94
GS12-18B	94.2	70.2	53.8	36.5	27.2	22.1	13.4	10

type time	5min	10min	15min	20min	30min	40min	50min	60min
GS12-24	645	496	380	323	262	212	180	158
GM12-38	1022	785	602	511	414	335	284	250
GM12-65	1748	1343	1029	874	708	574	486	427
GM12-100D	2730	1960	1550	1300	1015	820	623	390
GM12-100	2934	2106	1668	1404	1092	882	672	420
GM12-120	3227	2317	1835	1544	1200	970	739	462
GM12-150	4400	3160	2502	2106	1638	1323	1008	630
GM12-200	5868	4212	3336	2808	2184	1764	1344	840
GM12-250(230)	6750	4840	3836	3230	2510	2028	1545	966
