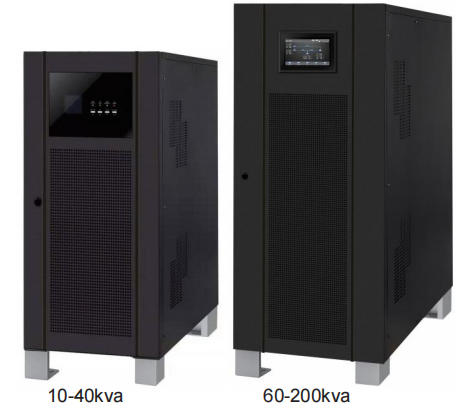

Mode |
R33-10K |
R33-15K |
R33-20K |
R33-30K |
R33-40K |
R33-60K |
R33-80K |
R33-100K |
R33-120K |
R33-160K |
R33-200K |
Nominal
Capacity |
KVA |
10 |
15 |
20 |
30 |
40 |
60 |
80 |
100 |
120 |
160 |
200 |
KW |
8 |
12 |
16 |
24 |
32 |
48 |
64 |
80 |
96 |
128 |
160 |

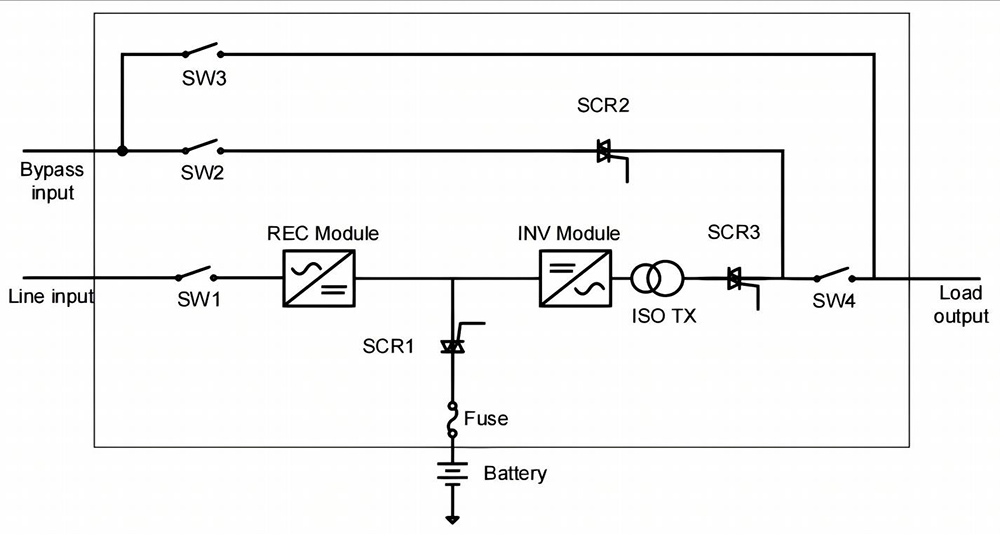

Input |
Rectifiter Type |
6 pulse |
Phase Number |
3 phase+N |
Main Input and Bypass Input |
Supports dual inputs |
Input Voltage |
380VAC/400VAC/415VAC 3P+N+PE |
Input Frequency |
50/60Hz ±5 Auto |
Input Range |
304-456VAC |
Total Harmonic Distortion (THDv) |
<2%(Linear Load);<5%(Non-linear Load) |
TVSS |
40kA (optional) |
Charging |
Charging Voltage |
432 VDC(Based on 32pcs batteries) |
Charging Current |
Default 10A."Maximum=
Capacity(KWV/Battery (real-
time) |
Default 10A;Maximum 40A;5A@full load |
Bypass |
Phase Number |
3 phase+N |
Input Nominal Voltage |
380VAC/400VAC/415VAC 3P+N |
Input Voltage Range |
285VAC ~ 475VAC |
Switching Time |
0ms(adopted static switch) |
Battery |
Type |
Lead Acid |
Capacity |
1~250AH settable (Configurate Battery Capacity according to Back-up Time) Defaultsetting is 100Ah |
Battery Number |
29~32units 12V |
Cold Start |
YES |
Battery Voltage |
384VDC |
Invertor
Output |
Phase Number |
Three Phase |
Power Factor |
Rated capacity*0.8 |
Nominal Voltage |
380VAC/400VAC/415VAC 3P+N option |
Output Voltage Regulation |
±1% |
Frequency |
50/60 Hz synchronised±1% With mains absent ±0.1 Hz |
Output Waveform Distortion Degree |
Sine Wave, Linear Load< 2%, Non-Linear Load<4% |
Overload Protection |
At 110% load 60Min, At 125% load ¡Ý 10Min, At 150% load ¡Ý 1Min |
Invertor Efficiency |
>92%(±2%) |
Protection Function |
Input Protection |
Input voltage, frequency over limited protection, Phase fault, Phase lack |
Output Prorection |
Over current, short circuit, over voltage, low voltage |
Battery Protection |
Over charge, over-discharge protection |
Overheat Protection |
Environment over temperature protection, inverter over temperature protection |
Hardware Fault Protection |
Assistant power abnormal, breaker cut off, breaker overload, power devices over current/over voltage etc protection |
System
Parameters |
Work Environment |
Temp: 0¡«55ºC, relative Humidity: 5%¡«95% |

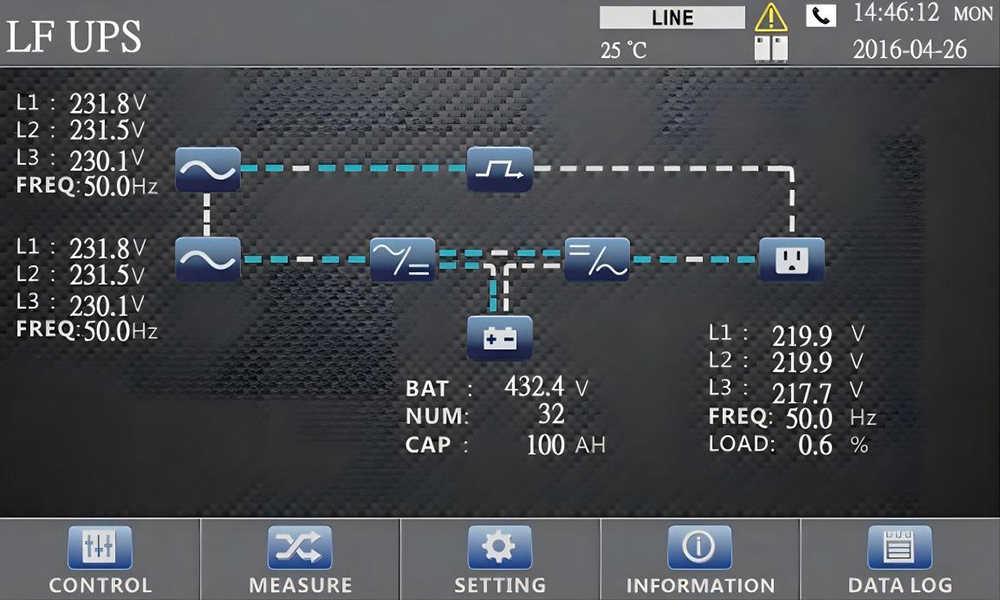

Communitation Interface |
With RS232/ RS485 Option |
Dry Contacts |
5 outputs and 4 inputs |
Optional SNMP |
Power management from SNMP manager and web browser |
Parallel Operation |
Max 4 units in parallel mode |
Protection Level |
IP20 |
Safety Performance |
EPO |
Noise(Db) |
70DB at 100% load |

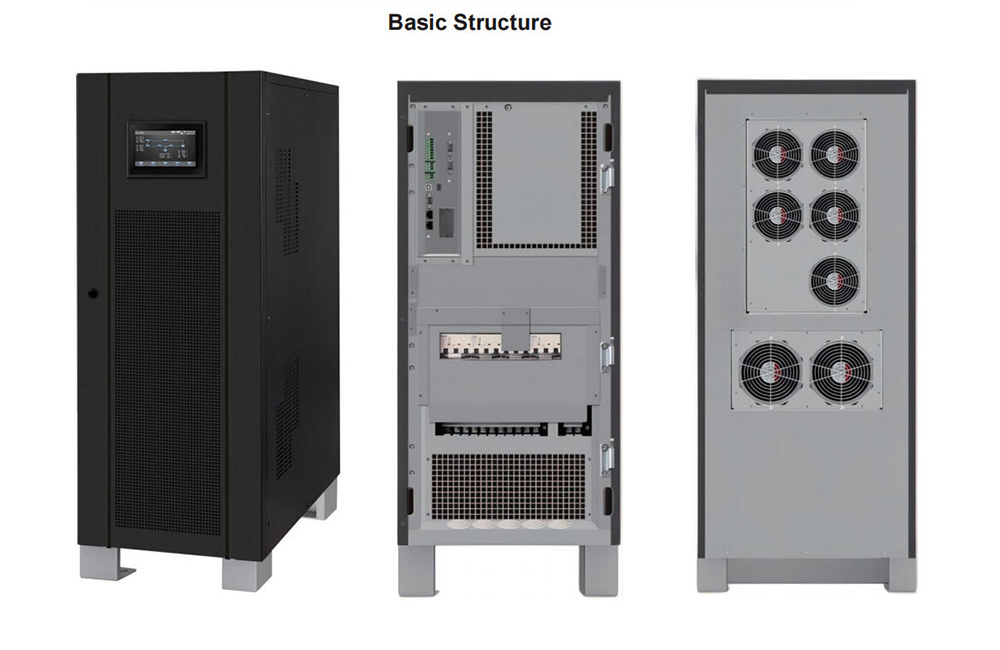

Mechanical Dimension(W*D*H)mm |
656¡Á405¡Á817 |
656x405x941 |
821¡Á432¡Á 1159 |
975¡Á554¡Á 1286 |
975¡Á554¡Á 1326 |
1051x705¡Á 1646 |
Weight(Kg) |
118 |
120 |
145 |
193 |
278 |
365 |
471 |
573 |
650 |
760 |
840 |
Optional |
Dust proof net, Conformal coating |
