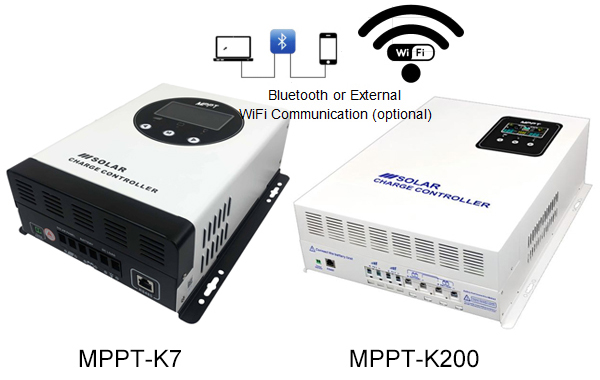

| Product Name： | 12/24/36/48V MPPT Solar Charge Controller MPPT-K7/K200 50-200A |
| Features |
|
◆ Metal case MPPT solar charge controller 12/24/36/48V 50-120A
◆ Common positive, Max PV input 200V, efficiency >99%
◆ Color LCD display for PV Bat load parameter setup and working status
◆ Multi-stages charging mode,bluk, absorption, float, equalization
◆ GEL, Sealed, Flooded, LiFePO4, customization
◆ With temperature compensation and current limiting charging
◆ Forced fan cooling on the top of controller
◆ With Lithium battery activation Function
◆ Default internal bluetooth/RS485 communication (RJ45 Port)
◆ External WIFI module option
|
 |
|
|
MPK7-6048 |
MPK7-6048 |
MPK7-8048 |
MPK7-8048 |
MPK7-10048 |
MPK7-10048 |
MPK200 |
MPK200 |
MPK200 |
| Model |
MPPT4850K7 |
MPPT4860K7 |
MPPT4880K7 |
MPPT48100K7A |
MPPT48100K7B |
MPPT48120K7 |
MPPT48120K200 |
MPPT48160K200 |
MPPT48200K200 |
| Output |
Rated charge voltage |
12 / 24 / 48V Auto (36V Manual set ) |
| Rated charge current |
50A |
60A |
80A |
100A |
100A |
120A |
120A |
160A |
200A |
| Rated output load current |
30A |
40A |
40A |
NO |
| Light control voltage |
5V / 10V / 15V / 20V |
| Load output control |
Normal, light control, light and timing control, timing control, reverse light control |
| Input |
Minimum PV VOC |
20V/40V/60V/80V |
| Maximum PV VOC |
<200V |
| 12V Max PV |
650W |
780W |
1040W |
1300W |
1300W |
1560W |
1560W |
2080W |
2600W |
| 24V Max PV |
1300W |
1560W |
2080W |
2600W |
2600W |
3120W |
3120W |
4160W |
5200W |
| 36V Max PV |
1950W |
2340W |
3120W |
3900W |
3900W |
4680W |
4680W |
6240W |
7800W |
| 48V Max PV |
2600W |
3120W |
4160W |
5200W |
5200W |
6240W |
6240W |
8320W |
10400W |
| Battery & Charge |
Battery type |
GEL, Sealed, Flooded, LiFePO4, customization |
| Equalize charge |
14.6V/29.2V/43.8V/58.4V |
| Boost charge |
14.4V/28.8V/43.2V/57.6V |
| Float charge |
13.8V/27.6V/41.4V/55.2V |
| Low voltage disconnection |
10.8V/21.6V/32.4V/43.2V |
| Low voltage reconnection |
12.6V/25.2V/37.8V/50.4V |
| Lithium battery activation |
YES |
| Communication |
Internal bluetooth |
Default |
| RS485 or RJ45 |
Default, RJ45 Port |
| External WiFi |
Optional, By the RJ45 Port |

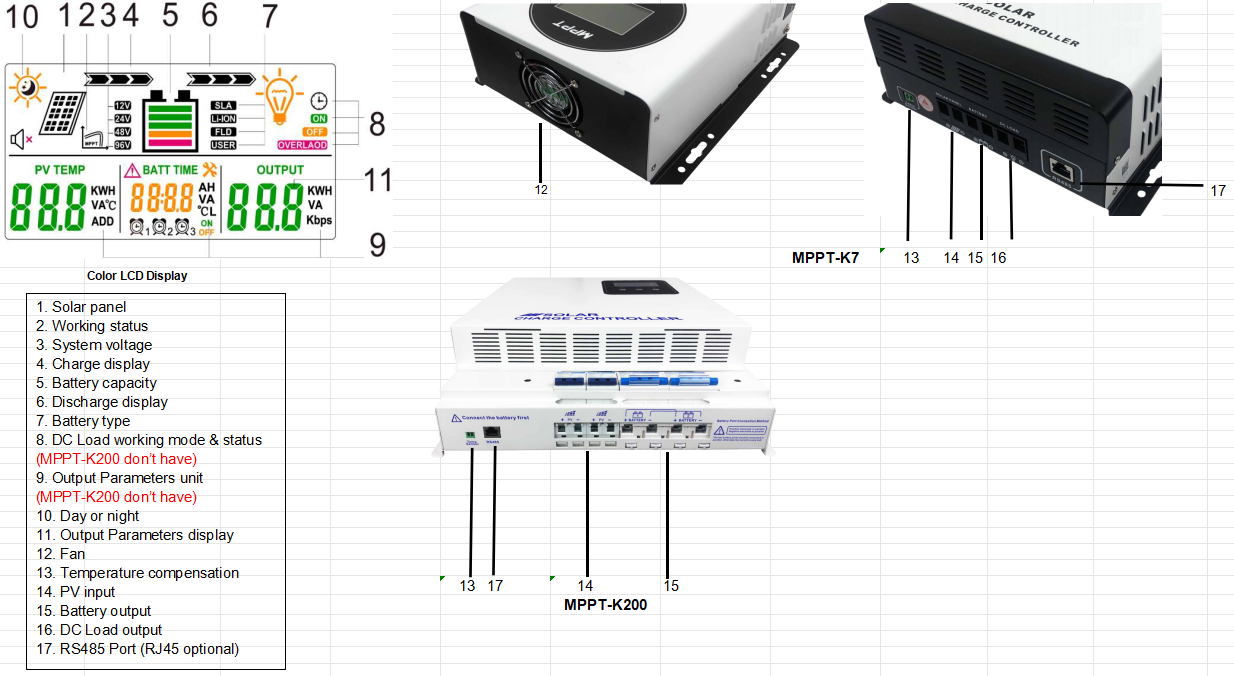

| LCD Display |
Day or Night; Charge status; System VDC; Bat type/Vdc/Charge/dscharge Amp/Ah/℃/%; Load on/off ; Bat/PV/Load parameters setup; Error Code |
| Protection |
PV Reverse Connection, BAT Reverse Connection, BAT Over/Low Voltage, Over Load |
| Human interface |
Color LCD with backlight, 3 buttons |
| Cooling mode |
AL alloy heat sink and fan cooling |
| No load consumption |
<35mA(48V) |
| Wiring |
High current copper terminal≤25mm2(3AWG) |
| Working temperature |
-20 ~ +55 ℃ |
| Storage temperature |
-30 ~ +80 ℃ |
| Humidity |
≤90%, nocondensation |
| Protection class |
IP23 |
| Physical |
Product size mm |
265*220*88 |
265*220*100 |
340*240*108 |
220*200*83 |
| PCS / CTN |
4 |
4 |
4 |
1 |
| CTN KG |
11 |
13 |
20 |
10.5 |
| CTN mm |
510*340*320 |
520*370*385 |
565*435*375 |
550*430*195 |
| |
 |
| |
|
|
|
|
|
