| Product Name£º | 12/24/36/48V MPPT Solar Charge Controller MPPT-R 20-100A |
| Features |
|
¡ô MPPT solar charge controller 12/24V 20-60A and 12/24/36/48V 30-100A
¡ô Common Positive, Max PV input 60/75/150V, efficiency >99%
¡ô LCD display for PV Bat Load parameter setup and working status
¡ô Multi-stages charging mode,Bluk, Absorption, Float, Equalization, CV
¡ô GEL, Sealed, Flooded, LiFePO4,Li(NiCoMn)O2, customization
¡ô With Temperature Compensation and current limiting charging
¡ô With Lithium battery activation Function

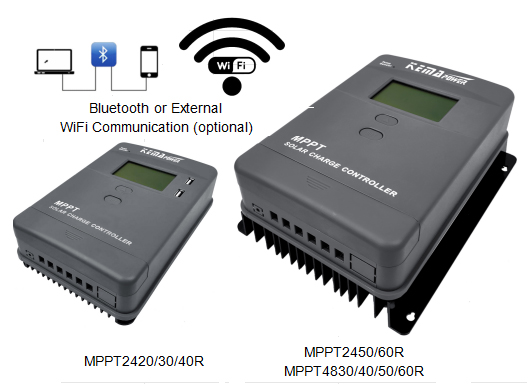

¡ô Internal Bluetooth or External WIFI Communication optional
¡ô 2*2A/5V USB port for 12/24V 20-40A controller
|
 |
|
|
MRL20 |
MRL30 |
MRL4024 |
MRL6024 |
MRL6024 |
MRL4048 |
MRL4048 |
MRL6048 |
MRL6048 |
MRL8048 |
MRL8048 |
| Model |
MPPT2420R |
MPPT2430R |
MPPT2440R |
MPPT2450R |
MPPT2460R |
MPPT4830R |
MPPT4840R |
MPPT4850R |
MPPT4860R |
MPPT4880R |
MPPT48100R |
| System voltage |
12 / 24V Auto |
12 / 24 / 48V Auto (36V Manual set ) |
| Rated charging current |
20A |
30A |
40A |
50A |
60A |
30A |
40A |
50A |
60A |
80A |
100A |
| Max PV VOC |
<60V |
<75V |
<100V |
<150V |
| Max PV Input Power |
12V |
260W |
390W |
520W |
650W |
780W |
390W |
520W |
650W |
780W |
1040W |
1300W |
| 24V |
52W |
780W |
1040W |
1300W |
1560W |
780W |
1040W |
1300W |
1560W |
2080W |
2600W |
| 36V |
/ |
/ |
/ |
/ |
/ |
1170W |
1560W |
1950W |
2340W |
3120W |
3900W |
| 48V |
/ |
/ |
/ |
/ |
/ |
1560W |
2080W |
2600W |
3120W |
4160W |
5200W |
| Battery type |
GEL, Sealed, Flooded, LiFePO4,Li(NiCoMn)O2, customization |
| Equalize charge** |
Maintenance-freelead-acid battery : 14.6V; GEL:NO; Lead-acid Flooded battery : 14.8V |
| Absorption charge** |
Maintenance-freelead-acid battery :14.4V; GEL:14.2V ; Lead-acid Flooded battery:14.6V |
| Float charge** |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery : 13.8V |
| Low voltage disconnection** |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 10.8V |
| Low voltage reconnection** |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 12.6V |
| High voltage disconnection** |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 16V |
| Lithium battery activation |
YES |
| Light control voltage |
5V / 10V / 15V / 20V |
| Temperature compensation coefficient |
-4mV/¡æ/2V (25¡æ) |
| No load consumption |
<50mA(24V); <35mA(48V) |
| DC output voltage |
Same as battery voltage |
| DC output current |
20A |
30A |
40A |
50A |
60A |
30A |
40A |
50A |
60A |
80A |
100A |
| Load control mode |
24hrs work, light control, light and timing control, timing control, reverse light control |
| Protection |
PV Reverse Connection, BAT Reverse Connection, BAT Over/Low Voltage, Over Load |
| LCD Display |

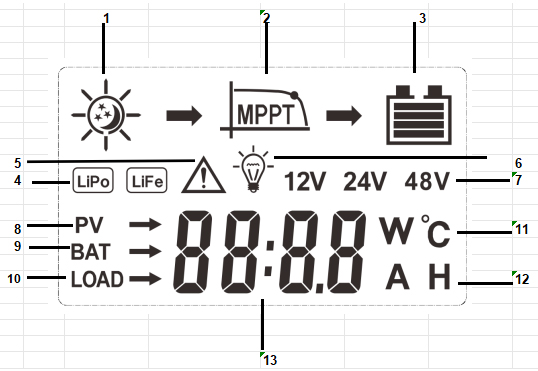

Day or Night; Charge status; System VDC; Bat type/Vdc/Charge/dscharge Amp/Ah/¡æ/%; Load on/off ; Bat/PV/Load parameters setup; Error Code |
| Human interface |
LCD with backlight, 2 buttons |

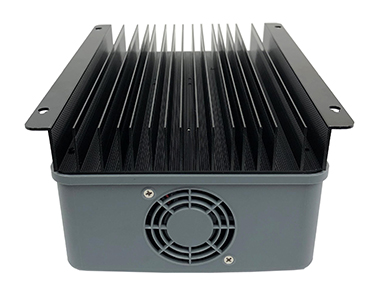

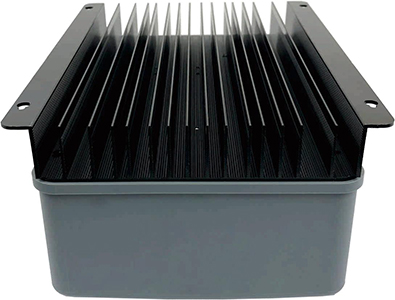

| Cooling mode |
Natural |
Fan |
Natural |
Fan |

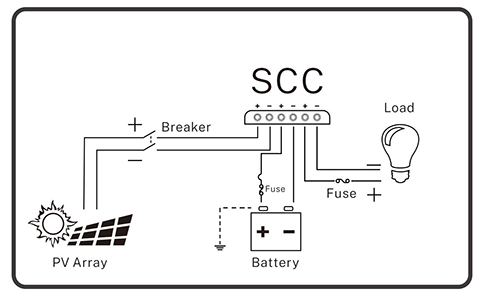

| Wiring |
High current copper terminal¡Ü25mm2(3AWG) |
| Working temperature |
-20 ~ +55 ¡æ |
| Storage temperature |
-30 ~ +80 ¡æ |
| Humidity |
¡Ü90%, nocondensation |
| Protection class |
IP30 |
| USB Charger |
2A/5V USB*2 |
NO |
NO |
NO |
NO |
| Internal bluetooth |
Optional |
| External bluetooth |
Optional |
| External WiFi |
NO |
Optional |
NO |
Optional |
| RS485 |
Optional |
| Product size mm |
123*178*50 |
132*195*60 |
144*818*70 |
190*260*95 |
144*218*80 |
190*260*110 |
212*294*120 |
| PCS / CTN |
30 |
20 |
12 |
6 |
12 |
6 |
6 |
| CTN KG |
19.5 |
17.5 |
17.5 |
13.7 |
19 |
15.2 |
18.4 |
| CTN mm |
410*390*300 |
420*340*295 |
495*405*310 |
445*445*330 |
550*410*390 |
495*445*330 |
505*480*350 |
| ** Remark |
The preceding parameters are 12V system and the temperature is 25'C. 24V system 2x; 36V system 3x; 48V system 4x. |
|
|
|
