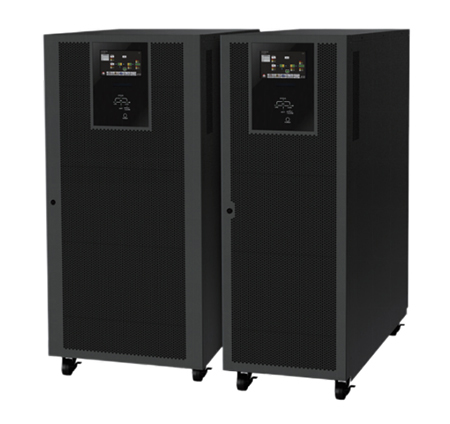

◆ LCD High Frequency True Online Double Conversion UPS ◆ DSP digital control technology, Zero transfer time ◆ Parallel max up to 4 units ◆ Three phase sine wave, output Power Factor 1 ◆ Wide input voltage range 110-300 VAC@ 50% load; 176-276VAC@ 100% load ◆ Wide input Frequency 60Hz support Generator, output HZ be fixed or follow mains ◆ Adjustable charging current ◆ Adjustable battery numbers ◆ Advanced Input PFC technology, 0.99 ◆ Full protection, overload, over voltage, short circuit, over temperature etc. ◆ EPO, RS232/USB communication with monitoring software, optional ◆ Parallel function, SNMP optional ◆7” color touch type LCD display

Technical Specifications

Model		33 RYY 100 KS
Phase		3-phase in / 3-phase out
Capacity		100KVA/ 100KW
Battery Type		External Battery
Parallel Capacity		4pcs
Input	Voltage	400VAC (3Ph+N+G)
	Voltage range	110-300 VAC@ 50% load; 176-276VAC@ 100% load
	Frequency	60Hz
	Power Factor	≧ 0.99 @ 100% Load
	Harmonic Distortion (THDi)	< 4% at full linear load
Output	Voltage	400VAC (3Ph+N+G)
	AC Voltage Regulation (Batt. Mode)	± 1%
	Factor	1
	Frequency Range	60 Hz (±0.01%)
	Current crest ratio	3:1(max)
	Harmonic Distortion	≦1 % THD (Linear Load) ; ≦3 % THD (Non-linear Load)
	Transfer Time	Zero
	Waveform (Batt. Mode)	Pure Sine wave
	Overload capacity	100-110% for 60 min, 111-125% for 10 min, 126%~ 150% for 1 min; >150% for 200ms
Bypass	Nominal Voltage	400VAC (3Ph+N+G)
	Voltage Range	-30% ~ +20% (Adjustable)
	Frequency Range (Synchronized Range)	46~54Hz or 56~64Hz
	Overload Capability	100-110% for 60 min, 111-125% for 10 min, 126%~ 150% for 1 min; >150% for 200ms
Battery	Nominal Voltage	+/- 192V~+/-240V
	Maximum Voltage	+/-240V (12V*40Pcs)
	Minimum Voltage	+/- 192V (12V x 32 Pcs)
	Floating Charge Voltage	2.28V/Cell (2.25~2.33 Selectable)
	Boost Charging Voltage	2.35V/Cell
	Temperature	Yes
	Maximum Charging Current (Per Power Module)	24A Adjustable
	Back-up time	10 minutes @ Full load
IP Class		IP20
RS -232 / USB		Supports Windows 2000/2003/XP/Vista/2008, Windows27/8/10, Linux and MAC
SNMP card		Optional
Work temperature		0℃~40℃
Altitude		＜1000m for normal power
Audible noise		≤60dB
Storage temperature		-15℃~45℃
Work humidity		20%~95%
Noise ( dB )		≤ 60dB
Product Size (L*W*H) mm		1000*430*1200
Net Weight (Kg)		200
