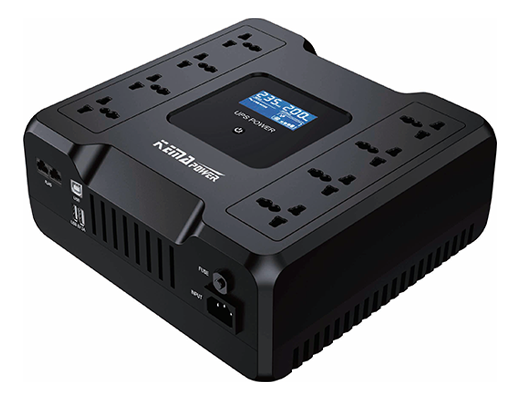

| Product Name： | Line Interactive Offline UPS AD650-U-AD1000-U |
◆ Plastic case, Line interactive UPS 650VA-1000VA
◆ Wide input ragne, Output 110V/120V or 220V/230V 50/60HZ
◆ CPU Control, SMT Technology, Boost and Bluck AVR
◆ Protection for Short circuit, overload and battery low voltage and else
◆ Mute function Settable and Smart battery management function
◆ AUTO Restart when AC recovers
◆ Off charge and Cold Start function
◆ USB Communication\ RJ45 Port\ USB Charger option
◆ LCD or LED display with alarm function |
|
MODEL |
AD650-U |
AD850-U |
AD1000-U |
Capacity |
650VA/360W |
850VA/480W |
1000VA/510W |
INPUT |
Voltage |
110V/120 VAC or 220/230/240 VAC |
Voltage Range |
81-145VAC or 145-275VAC |
Frequency |
60/50 Hz(Auto sensing) |
OUTPUT |
Voltage |
110/120 VAC or 220/230/240 VAC |
Voltage Range |
±10% |
Frequency Range |
60/50±1HZ |
Transfer Time |
4-6ms |
Wave Form |
Simulated sine wave |
Socket |
8PCS,Universal/IEC/American/European, 4PCS Bacup,4PCS Bypass |
BATTERY |
Battery Model & Quantity |
1* 12V/7AH |
1* 12V/9AH |
1* 12V/9AH |
Charge Time |
8 hours recover to 90%capacity |
PROTECTION |
Full protection |
Over Discharge,Short circuit,overload protection,Over/Low input Voltage |
INDICATORS |

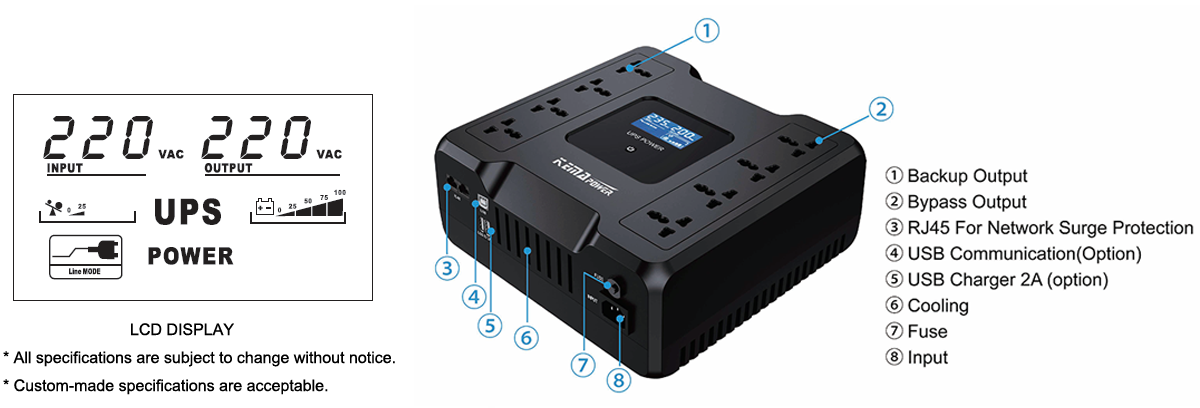

LCD display |
AC mode,Battery mode,Load level,Battery level,Input voltage,Output voltage,Overload and low battery |
Or LED Display |
AC Mode:Green lighting; Battery Mode:Yellow flashing; Fault:Red lighting |
ALARM |
Battery mode |
Sounding every 4 seconds |
Low battery |
Sounding every second |
Overload |
Sounding every second |
Fault |
Continuously sounding |
INTERFACE |
RJ45/USB Com . |
USB Com Support windows XP/Vista,Windows 7/8,Linux,Unix,and MAC RJ45,Option |
USB Charger |
5V 2Amp Option |
ENVIRONMENT |
Humidity |
0-90%RH @0-40C(Non-condensing) |
Noise Level |
Less than 40dB |
Product Size(mm) |
115* 115*40 |
N/W (kg) |
5.8 |
6.0 |
6.0 |
 |
|
|
|
