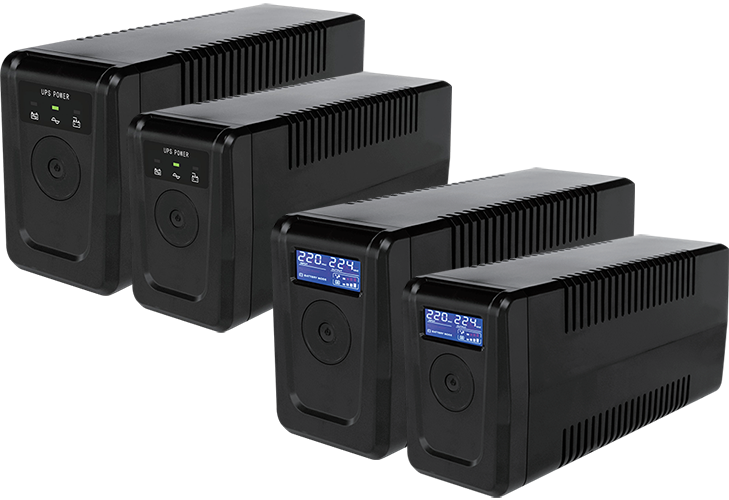

Product Name：Line Interactive offline UPS AD500P-AD1500P

     Key Features

    ◆ Plastic case,,Line interactive UPS 500VA-1500VA

    ◆ Wide input ragne,Output 110V/120V or 220V/230V 50/60HZ

    ◆ CPU Control, SMT Technology,Boost and Bluck AVR

    ◆ Protection for Short circuit ,overload and battery low voltage and else

    ◆ LED indication and audible alarm function

    ◆ mute function Settable and Smart battery management function

    ◆ AUTO Restart function when AC recovers

    ◆ Off charge and Cold Start function

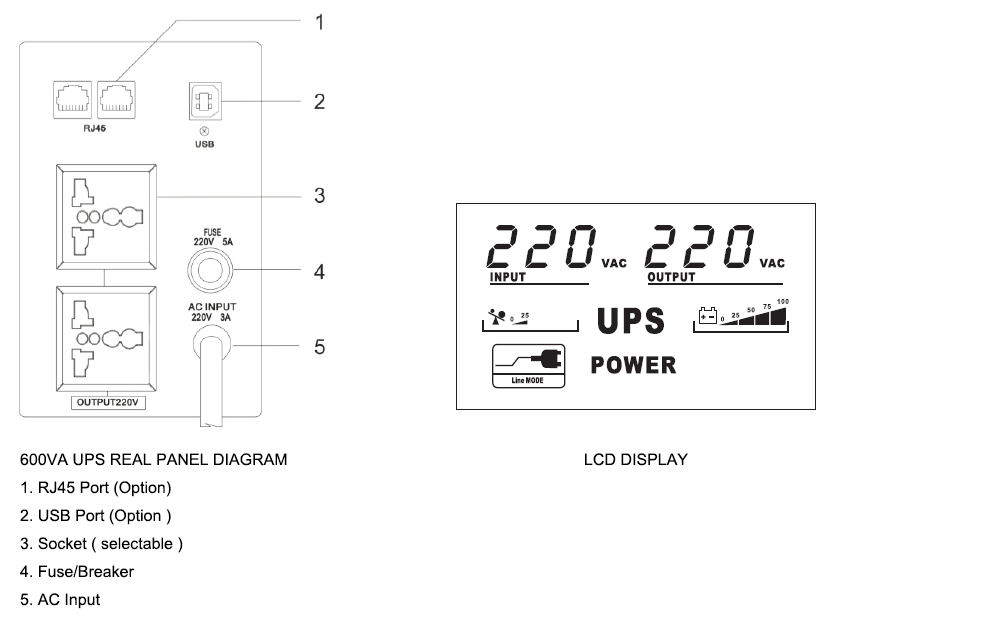

    ◆ RJ45 and USB is option

    ◆ LCD display is option




     Technical Specifications

    MODEL AD500P AD650P AD800P AD1000P AD1500P
    Capacity 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1500VA/900W
    INPUT
    Voltage 110V/120 VAC or 220/230/240 VAC
    Voltage Range 81-145VAC or 145-275VAC
    Frequency 60/50 Hz(Auto sensing )
    OUTPUT
    Voltage 110/120 VAC or 220/230/240 VAC
    Voltage Range ±10%
    Frequency Range 60/50±1HZ
    Transfer Time 4-6ms
    Wave Form Simulated sine wave
    BATTERY
    Battery Model & Quantity 1*12V/4.5AH 1*12V/7AH 1*12V/9AH 2*12V/7AH 2*12V/9AH
    Charge Time 8 hours recover to 90%capacity
    PROTECTION
    Full protection Discharge,Short circuit and overload protection
    INDICATORS
    LCD display AC mode,Battery mode,Load level,Battery level,Input voltage,Output voltage,Overload and low battery
    Or LED display LED for Line Mode,Battery Mode, Charge Mode
    ALARM
    Battery Mode Sounding every 4 seconds
    Battery Low Sounding every second
    Overload Sounding every second
    Fault Continuously sounding
    INTERFACE
    USB/RJ45 Port (Optional) USB Com Support windows XP/Vista,Windows 7/8,Linux,Unix,and MAC RJ45,Option
    ENVIRONMENT
    Humidity 0-90%RH @0-40C(Non-condensing)
    Noise Level Less than 40dB
    Product Size(mm) 310*95*130 310*95*130 310*95*130 315*120*170 315*120*170
    N/W(kg) 3.9 5.1 5.6 9.8 11.8
