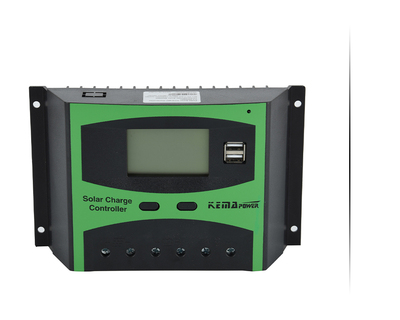

12/24/48V PWM Solar Charge Controller HT 30-60A

◆ LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A

◆ 12/24V automatic recognition or 48VDC

◆ 2*1A USB Charger

◆ Charging and discharging parameters adjustable

◆ Time and Light Control function selectable for street light

◆ Preset charging parameters for three battery types

◆ With Temperature compensation function

◆ LCD for generated energy capacity, fault code, battery, PV, Load, charge, discharge details

◆ Protection for PV input over current and reverse polarity; battery over charge, over discharge, reverse polarity and back discharge; Load overload and short circuit, controller over Temp

◆ ......

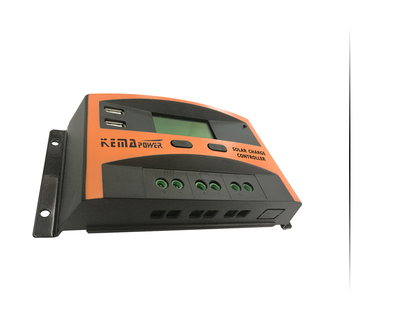

12/24/48V PWM Solar Charge Controller HT30DU 10-30A

◆ PWM Solar Charge Controller 12/24V 10/20/30A, 48VDC 10/20/30A

◆ LCD Display, with 2 USB charger

◆ LCD display generated energy, fault code and battery, PV, Load, charge, discharge details

◆ Bigger terminal, more safety and easy to installation

◆ Selectable Battery type, 4 stage Charge, adjustable charge parameter

◆ Temperature compensation Charge and clock function

◆ Load working mode, Normal, Light Control, Light and Double time control

◆ Protection for over charge, over discharge, overload, and short circuit, reverse polarity

◆ Communication with computer by RJ45 option

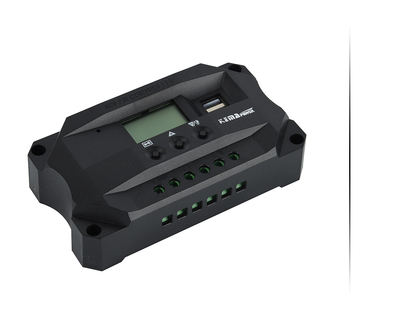

12/24V PWM Solar Charge Controller HHDU 10-40A

◆ LCD PWM Solar Charge Controller 12/24V 10/20/30/40A

◆ 12V 24V Auto, 2*5V 2A USB charger

◆ 3 stage Charge with Temperature compensation

◆ Selectable AGM GEL Flood Battery type, 10A 20A Lithium bat

◆ Setable Charge discharge Parameter

◆ Over charge /discharge, overload, and short circuit, Open Circuit, reverse polarity protection

◆ LCD Indicators for Charing, Load, fault and protection status

◆ Load working mode, Normal, Light Control, Light+time control
