5, SP 1.5-6KW

ITEM

Model

GPSW-II

1KW

GPSW-II

1.5KW

GPSW-II

2KW

GPSW-II

3KW

GPSW-II

4KW

GPSW-II

5KW

GPSW-II

6KW

Rated power

1000W

1500W

2000W

3000W

4000W

5000W

6000W

Efficiency

>95% under AC mode, >88% under DC mode, Toroidal transfromer

Battery＆

Charger

Rated voltage

12/24 /48VDC

24/48VDC

24/48VDC

48/96VDC

Charge current

30A（default), C0-C6 adjustable by LCD Monitor

Battery type

U0-U7 selectable by LCD Monitor

Input

Voltage range

85-138VAC/170-275VAC

170-275VAC

Frequency

45-65Hz

Output

Voltage range

110VAC/220VAC;±5%( Bat mode), 110VAC/220VAC; ±15%( Line mode)

±5%(Bat mode)

/ 220VAC

Frequency

50/60Hz±1%( bat mode)

wave form

Pure sine wave

Transfer Time

less than 10 ms (typical)

Overload

110-120%/30S；＞160%/300ms

Power Factor

0.9~1.0

Protection

Battery overvoltage/lowvoltage, overload, short circuit protection, oevertemperature protection, etc.

Working

mode

Grid priority

UPS Mode, Grid power priority, Battery power ( Solar Power) as backup

Battery priority

Solar inverter Mode, battery Power priority, Grid power as Backup

Power Saver mode

Load > 5% continous output, < 5% no output and detect load per 10MS

Mode select

setup by the LCD Monitor

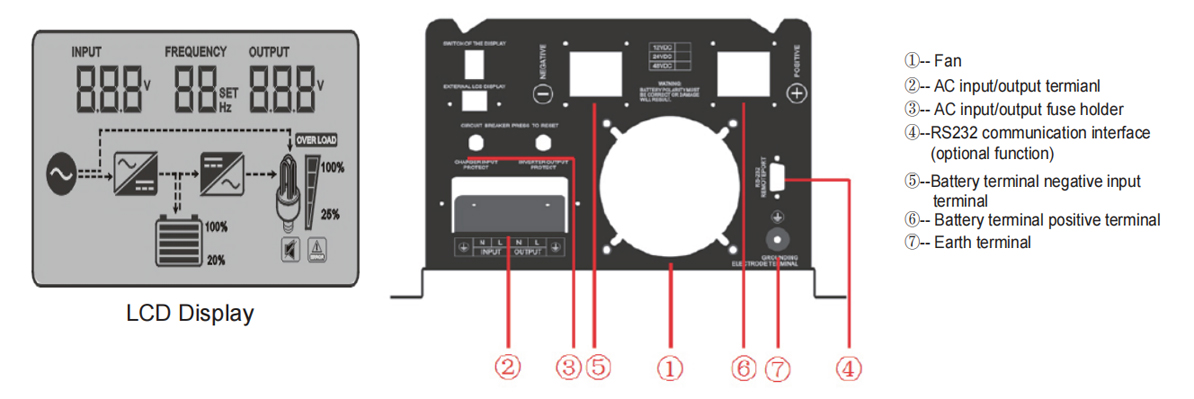

LCD Display

Working Mode, input and output VAC, HZ, BAT %, Load %, setup working mode, battery type ,Buzzing icon, Fault

Optional

RS232 Communication, SNMP Net Agent,Remote Control OPTION

Operating ambient temperature

0-40℃

Storage ambient temperature

-15 - +50℃

Operating/ Storage ambient

0-90% No condensation

Product Size: L*W*H (mm)

486*247*179

555*307*189

Package size: L*W*H (mm)

550*310*230

640*370*240

Net/ Gross weight (KG)

13/15KG

15KG/17KG

17/19KG

22/24KG

27/29KG

31/33KG

33/35KG

ATTENTION

the inverter do not build in solar charger controller
