1, 10-50KLV
|
|
|
|
Picture |
◆ Thee Phase 127/220V ON Grid string inverter 10KW to 50KW
◆ Applicable to American and Central American market
◆ 200-800V PV range allows more flexible module selections
◆ Option zero export function by Limiter or energy meter to control excess power into grid
◆ Transformerless design with higher operation efficiency
◆ Firm IP65 inverter enclosure allows outdoor application
◆ Integrated RS485/RS232/WIFI/LAN communications, WIFI Plug option
◆ Limiter or energy meter option
◆ 2-4pcs MPP tracker, Max. efficiency up to 98.6%
◆ String intelligent monitoring and Ani-PID option function
| TECHNICAL SPECIFICATIONS
Model | 10K-LV | 12K-LV | 15K-LV | 20K-LV | 25K-LV | 30K-LV | 35K-LV | 40K-LV | 45K-LV | 50K-LV | |
Input Side | Max. DC Input Power | 13KW | 15.6KW | 19.5KW | 26KW | 32.5KW | 39KW | 45.5KW | 52KW | 58.5KW | 65KW |
Max. DC Input Voltage | 800V | ||||||||||
Start-up DC Input Voltage | 250V | ||||||||||
MPPT Operating Range | 200~700V | ||||||||||
Max. DC Input Current (A) | 25+25 | 25+25 | 30+30 | 40+40 | 40+40+40 | 40+40+40+40 | |||||
Number of MPPT/ Strings per MPPT | 2/ 2+2 | 2/2 | 2/3 | 2/3 | 3/3 | 4/3 | 4/3 | 4/4 | |||
Output Side | Rated Output Power (KW) | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
Max. Active Power (KW) | 11 | 13.2 | 16.5 | 22 | 27.5 | 33 | 38.5 | 44 | 49.5 | 55 | |
Rated AC Grid Voltage | 127 / 220V | ||||||||||
AC Grid Voltage Range | 176Vac~242Vac (this may vary with grid standards) | ||||||||||
Rated Grid Frequency | 60 / 50 Hz (Optional) | ||||||||||
Operating Phase | Three phase, L1+L2+L3+N+G | ||||||||||
Rated AC Grid Output Current (A) | 26.2 | 31.5 | 39.4 | 52.5 | 65.6 | 78.7 | 91.9 | 104.9 | 118.1 | 131.2 | |
Max. AC Output Current (A) | 28.9 | 34.6 | 43.3 | 57.8 | 72.2 | 86.6 | 101.1 | 115.5 | 129.9 | 144.4 | |
Output Power Factor | 0.8 leading to 0.8 lagging | ||||||||||
Grid Current THD | <2% | ||||||||||
DC Injection Current (mA) | <0.5% | ||||||||||
Grid Frequency Range | 57~62 | ||||||||||
Efficiency | Max. Efficiency | 98.60% | 98.70% | 97.80% | |||||||
Euro Efficiency | 97.80% | 98% | 98.30% | ||||||||
MPPT Efficiency | >99% | ||||||||||
Protection | DC Reverse-Polarity Protection | Yes | |||||||||
AC Short Circuit Protection | Yes | ||||||||||
AC Output Overcurrent Protection | Yes | ||||||||||
Output Overvoltage Protection | Yes | ||||||||||
Insulation Resistance Protection | Yes | ||||||||||
Ground Fault Monitoring | Yes | ||||||||||
Anti-islanding Protection | Yes | ||||||||||
Temperature Protection | Yes | ||||||||||
Integrated DC Switch | Yes | ||||||||||
Remote software upload | Yes | ||||||||||
Remote Change of Operating Parameters | Yes | ||||||||||
Surge Protection | DC Type II / AC Type II | ||||||||||
General Data | Size (WxHxD) mm | 400×520×240.5 | 647.5×537×303.5 | 700×575×297 | |||||||
Weight (kg) | 28 | 44.5 | 60 | ||||||||
Topology | Transformerless | ||||||||||
Internal Consumption | <1W (Night) | ||||||||||
Running Temperature | -25~65℃ | ||||||||||
Ingress Protection | IP65 | ||||||||||
Noise Emission (Typical) | <45 dB | <55 dB | |||||||||
Cooling Concept | Smart cooling | ||||||||||
Max. Operating Altitude without Derating | 2000m | ||||||||||
Designed Lifetime | >20 years | ||||||||||
Grid Connection Standard | EN50549, IEC61727, VDE 0126-1-1, IEC62109-1-2 | ||||||||||
Operating Surroundings Humidity | 0-100% | ||||||||||
Safety EMC/ Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-3 | ||||||||||
Display | LED | PV/I GRID/INV ON/OFF status, Fault display | |||||||||
LCD | Energy KWH, Inverter IP VDC Amp, OP VAC HZ Amp, temperature, PV strings MPPT voltage current, Load W, setup, statistics data, Fault Code. | ||||||||||
Features | DC Connection | MC-4 mateable | |||||||||
AC Connection | IP65 rated plug | ||||||||||
Display | LCD 240×160 | ||||||||||
Interface | RS485/ RS232/ Wifi/ LAN | ||||||||||

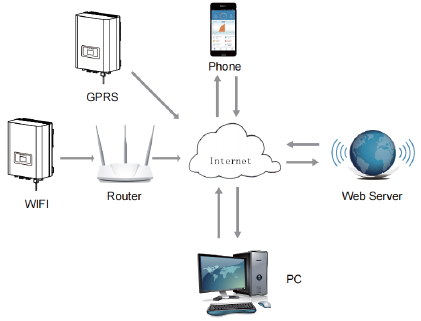

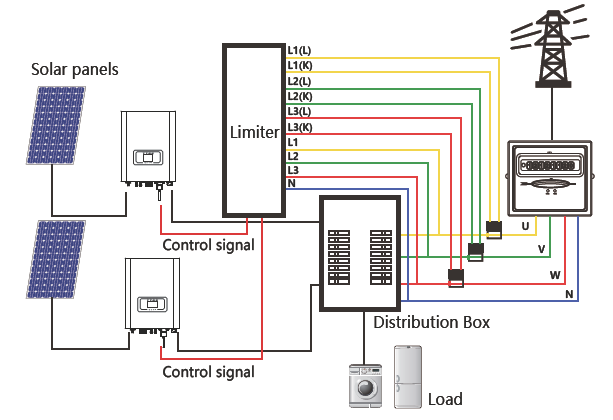

System Wiring Diagram, the Limiter is option Internet Monitoring Solution

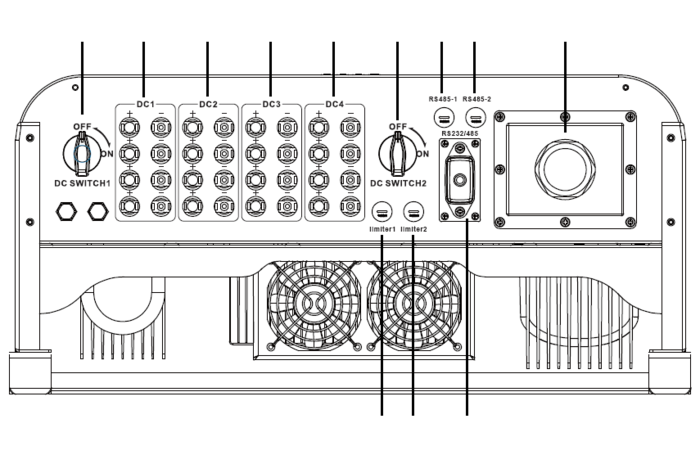

1.DC Switch 1/2
2.PV string input DC1/2/3/4
3.Limiter 4.RS485 1/2 Parallel
5.RS232/485 communications
6.Grid port
|
|
