4, PM20/30K RM


KEY FEATURE

副标题

◆ Power Module 20K 30K Rack Module UPS 80/90/120/120/200/210/300KW

◆ High effciency over 94.5% at 50% load, output power factor 1 technology

◆ DSP control, online double conversion, integrated modular and parallel technology

◆ High scalability, single rack expanding 30KVA to 300KVA, N+1 or N+X redundancy in the same rack, supports 1+1 cabinet parallel operation

◆ Built-in maintenance bypass, praevia all panel control and connectors

◆ Highly reliable operation with redundant power supply(2) in STS

◆ High overload Capacity, 60mins@110%, 10mins@125%, 1mins@150%

◆ 32 to 40PCS adjustable battery numbers

◆ Adjustable charging current, Max at 8A or 6A depending on module

| TECHNICAL SPECIFICATIONS

MODEL	RM90/30X -RYY	RM120/30X42U -RYY	RM120/30X30U-RYY RM80/20X-RYY	RM180/30X-RYY RM120/20X-RYY	RM200/20X -RYY	RM210/30X -RYY	RM300/30X -RYY
PHASE	3-phase in/ 3-phase out
CABINET CAPACITY*	90KW	120KW	120KW or 80KW	180KW or 120KW	200KW	210KW	300KW
BATTERY TYPE	Built-in Battery		External Battery
One Power Module Capacity	30KVA/30KW		30KVA/30KW or 20KVA/20KW		20KW	30KVA/30KW	30KVA/30KW
Max. Power Module No.	3	4	4	6	10	8	10
Max. Battery Set No.**	3	5	-	-	-	-	-
INPUT
Nominal Voltage	3 x 380VAC/400VAC/415VAC (3Ph+N)
Voltage Range	305~478VAC at 70%-100% load; 208~478VAC for <70% load
Nominal Frequency	50/60Hz (Auto sensing)
Frequency Range	40Hz~70Hz
Power Factor	>0.99 at 100% load, >0.98 at 50% load
Harmonic Distortion (THDi)	<3% @100% load
OUTPUT
Nominal Voltage	3 x 380VAC/400VAC/415VAC (3Ph+N)
Voltage Regulation (Steady state)	≦±1% Typical (balanced load) ≦±2% Typical (unbalanced load)
Nominal Frequency	50/60Hz
Frequency Range (Synchronized range)	46Hz~54Hz or 56Hz~64Hz
Overload Capability	1 hour for 110%, 10 mins for 125%, 1 min for 150% and 200ms for >150%
Harmonic Distortion	≦2% THD (Linear Load) ≦4% THD (Non-linear Load)
Efficiency	Up to 94.5%
BATTERY / CHARGER
Nominal Voltage	+/- 216V (12V*36 Pcs)
Maximum Voltage	+/- 240V (12V*40 Pcs)
Minimum Voltage	+/- 192V (12V*32 Pcs)
Floating Charge Voltage	2.25V/ Cell
Boost Charging Voltage	2.35V/ Cell
Temperature Compensation	Yes
Maximum Charging Current (Per Power Module)	8A		8A for 30KW power module 6A for 20KW power module		6A	8A	8A

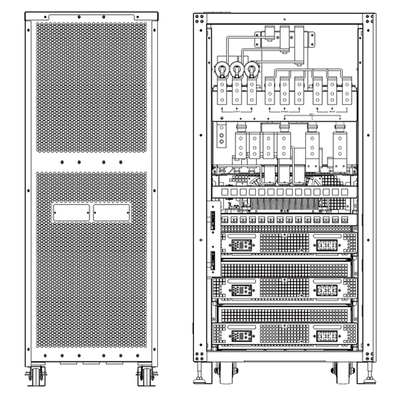

PHYSICAL
Cabinet Dimension (DxWxH)mm	11006001475	11006002010	11006001475	11006001475	11006002010
Net Weight (kgs)	675	932	335 or 333	437.5 or 434.5	611	549	620
ENVIRONMENT
Operation Temperature	0~40℃
Relative Humidity	0~95% non-condensing
Altitude***	<1000m for Nominal power
IP Class	IP 20
MANAGEMENT
RS-232/ USB	Supports Windows 2000/2003/XP/Vista/2008/7, Linux and MAC
Optional SNMP	Power management from SNMP manager and web browser
STANDARDS
Safety	IEC/EN 60950-1; IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3


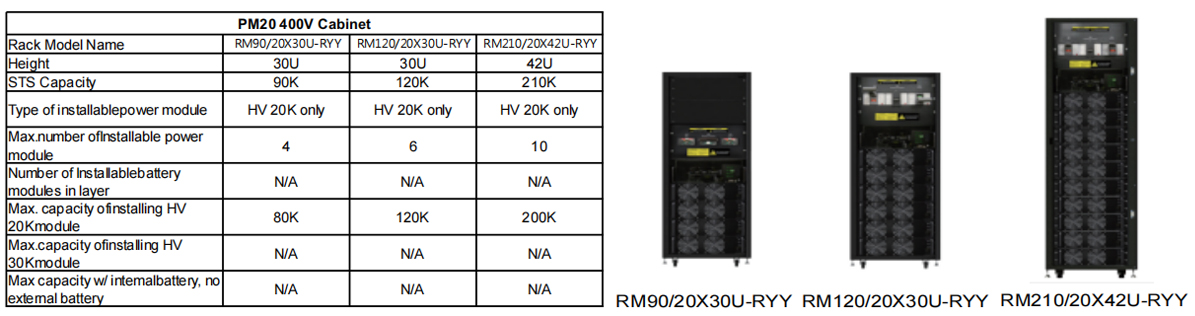

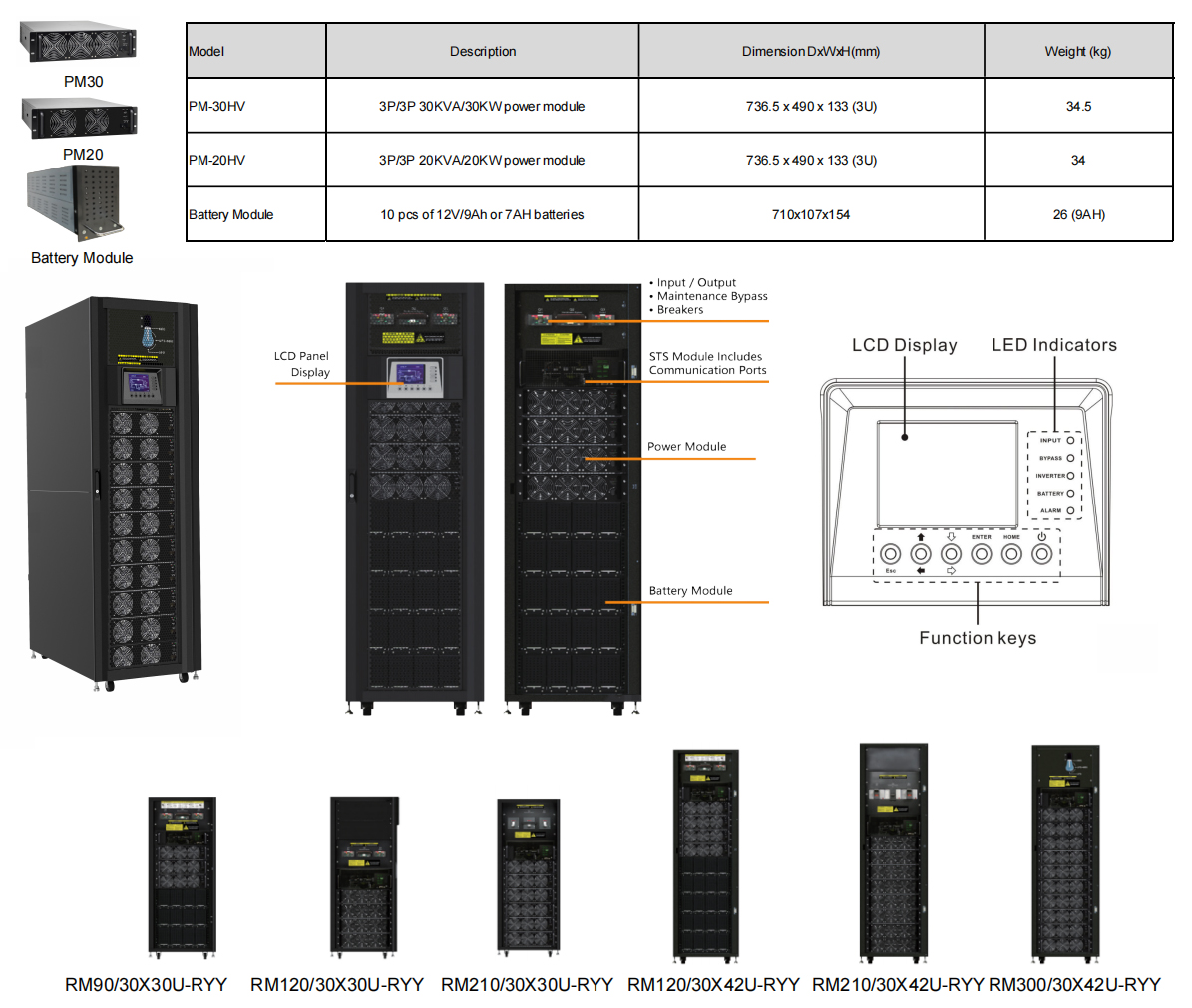

PM30 400V Cabinet
Rack Model Name	RM90/30X-RYY	RM120/30X30U-RYY	RM180/30X-RYY	RM120/30X42U-RYY	RM210/30X-RYY	RM300/30X-RYY
Height	30U	30U	30U	42U	42U	42U
STS Capacity	90K	120K	210K	120K	210K	300k
Type of installable power module	HV 30K or HV 20K	HV 30K or HV 20K	HV 30K or HV 20K	HV 30K or HV 20K	HV 30K or HV 20K	HV 30K or HV 20K
Max. number of installable power module	3	4	6	4	8	10
Number of installable battery modules in Layer	3	N/A	N/A	5	N/A	N/A
Max. capacity of installing HV 20K module	60K	80K	120K	80K	160K	200K
Max. capacity of installing HV 30K module	90K	120K	180K	120K	210K (lf installed with 8pcs, one is for redundancy)	300K
Max capacity winternal battery, no external battery	60K (Maximum with 3 layers of battery modules)	N/A	N/A	90K (Maximum with 5 layers of battery modules)	N/A	N/A
Built-in empty battery modules in BOM	Yes, 12pcs	No	No	Yes, 20pcs	No	No
