1, 33XG10-40K(S)
|
|
|
|
Picture Video |

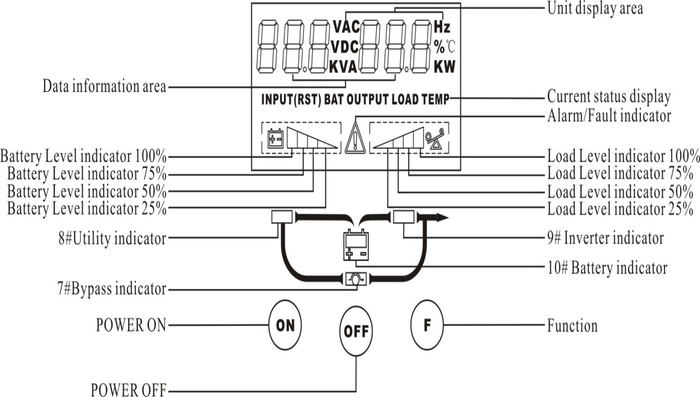

◆ LCD High Frequency Double Conversion Sine Wave Online UPS 10-40KVA
◆ DSP digital control technology, Zero transfer time
◆ Three phase sine wave, output Power Factor 0.9
◆ Wide input voltage range 274-478V
◆ Wide input frequency 40-60Hz(50Hz)/50-70Hz(60Hz), support Generator, output Hz be fixed or follow mains
◆ Advanced Input PFC technology, 0.99
◆ Full protection, overload, overvoltage, shortcircuit, overtemperature etc.
◆ Adaptive Load Management
◆ Generator compatible
◆ RS232 communication with monitoring software, optional
◆ EPO, SNMP optional,PRC10-40K Option
| TECHNICAL SPECIFICATIONS
Model | 33XG10KS | 33XG10K | 33XG20KS | 33XG20K | 33XG30KS | 33XG40KS | |
Capacity | 10KVA/9KW | 20KVA/18KW | 30KVA/27KW | 40KVA/36KW | |||
Input | Voltage | 3PH+N+G, 380V | |||||
Voltage Range | (274-478)VAC (Full load) | ||||||
Breaker | 32A | 50A | 60A | 80A | |||
Frequency | 40~60Hz (50Hz)/ 50~70Hz (60Hz) | ||||||
Factor | >0.99 | ||||||
Output | Voltage | Ph to N, 220V 200/208/220/230/240VAC (1±1%), adjusted by software. 10% derating for 208VAC/200VAC. | |||||
Current | 15A | 30A | 45A | 61A | |||
Factor | 0.9 | ||||||
Frequency | Line Mode (1) synchronized 46~ 54Hz; | ||||||
Line Mode (2) 50Hz (line 40~46 or 54~60Hz); | |||||||
Bat mode: 50Hz. (60HZ for Choice) | |||||||
Distortion | THD<3% (R full load) | ||||||
Overload Capacity | 105% - 125% transfers to bypass mode after 1 minutes; | ||||||
Current Crest Ratio | 3:1 | ||||||
Efficiency | Line: ≥93%, Bat: ≥90% | ||||||
Communication | RS232 with softwave and Canble. SNMP Option | ||||||
Rated Bat No. | 192(240)VDC | 16(20)*7Ah | 192(240)VDC | 16(20)*7Ah | ±192(240)VDC | ||
Charge Current | 5A | 1A | 7.5A | 1A | 10A | ||
ECO/ EPO | Optional | ||||||
Short Circuit Protection | YES | ||||||
Working Temperature | 0℃~40℃ | ||||||
Altitude | <1000m | ||||||
Audible Noise | ≤60dB | ||||||
Storage Temperature | -15℃~45℃ | ||||||
Work Humidity | 20%~95% | ||||||
Noise (dB) | ≤60dB | ||||||
Dimension (L*W*H) mm | 533*260*501 | 717*260*710 | |||||
Weight (kg) | 26 | 83.5 | 50 | 98 | 58.5 | 60 | |

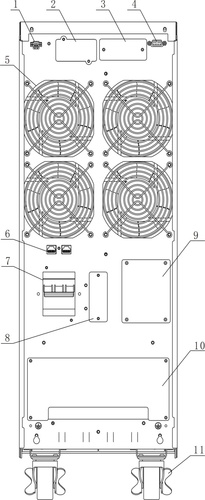

 | 10-40KVA BACK VIEW 1. EPO Emergency shutdown switch 2. SNMP card 3. Parallel board install position 4. RS232 communication interface 5. FAN 6. RJ45 7. Input breaker 8. Battery connect position 9. Wiring installation 10. Terminal block 11. Wheel |
|
|
