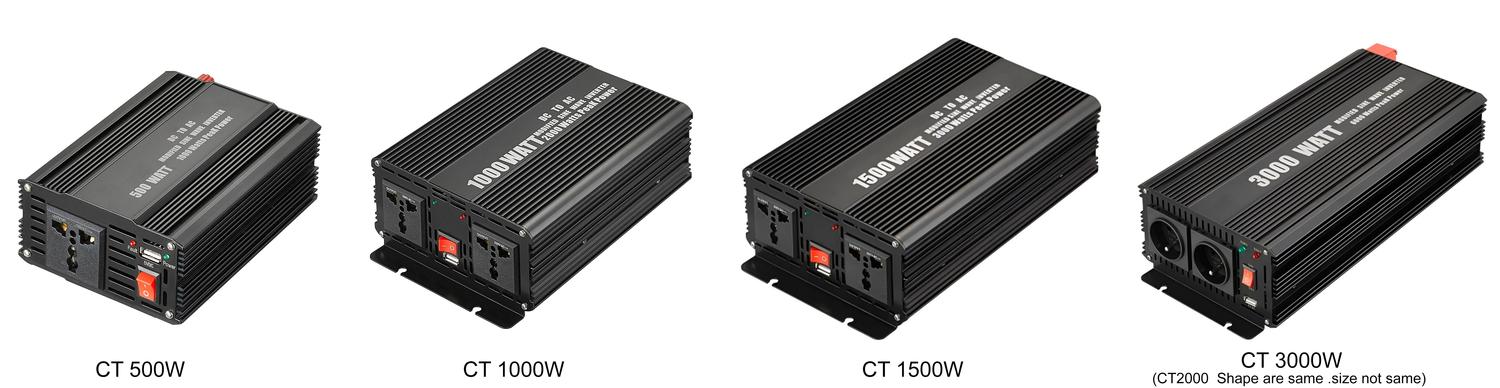

3, CT300-3000


KEY FEATURE

副标题

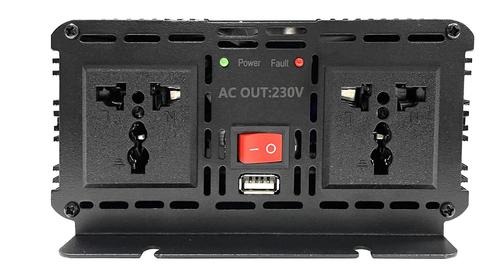

◆ High Frequency DC/AC Power Inverter CT 300-3000W

◆ Single phase Modified sine wave with USB Charger

◆ Output 220V/230V or 110V/120V 50/60HZ

◆ Full range protection for the output and the battery

◆ Two times surge capacity for all modes

◆ Use as Car inverter / Home inverter/ Solar Inverter

◆ Selectable Socket S03/S05/S11/S12/S13/S14

◆ With Battery Cable

| TECHNICAL SPECIFICATIONS

Model	CT300	CT500	CT1000	CT1500	CT2000	CT3000
Rated Power	300W	500W	1000W	1500W	2000W	3000W
Surge Power	Two Times of the Rated Power for few seconds
Input Voltage	12/24 or 48VDC, choose while order
Output Voltage	110VAC or 220VAC ±5%
USB Port	5V
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Modified Sine Wave
Soft Start	YES
Output Efficiency	88% MAX
DC Voltage Range	10-15.5V@12VDC，Else is times
Low Voltage Alarm	10.5±0.5V@12VDC，Else is times
Low Voltage Shut Down	10±0.5V@12VDC，Else is times
Low Voltage Recovery	13±0.5V@12VDC，Else is times
Over Voltage Shut Down	15.5±0.5V@12VDC，Else is times
Over Voltage Recovery	14.8V±0.5V@12VDC，Else is times
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature
Working Temperature	-10℃ - +50℃
Product Size(mm)	15511258	18011258	24515077	28515077	32016792	41016792
Carton Size(mm)	520495320	520495320	540340420	520365400	490410490	485345485
Carton Weight (kg)	29.3	33	18.7	20.4	24.1	19.8
PCS/ CTN	32	32	8	8	6	4
REMARK	CTSW-D, Digital display D; CTSW-E, Digital display E, CTSW-R, Remote Switch

Socket is selectable for all Modes

HF DC/AC Modified Power Inverter CT 300-3000W.pdf

HF DC/AC Modified Power Inverter CT 300-3000W user manual.pdf

| DOWNLOAD

specification
