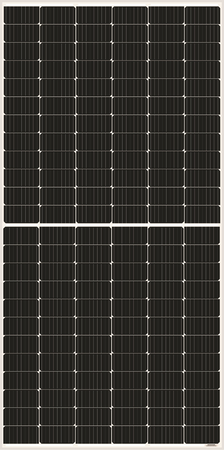

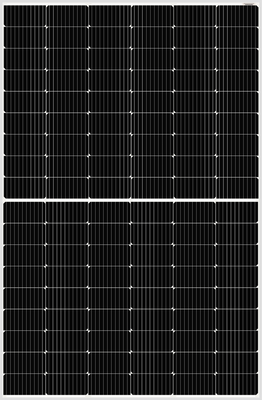

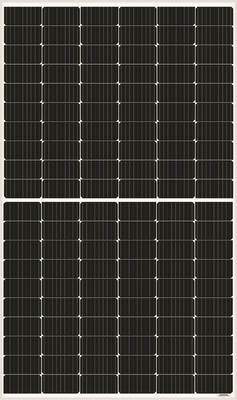

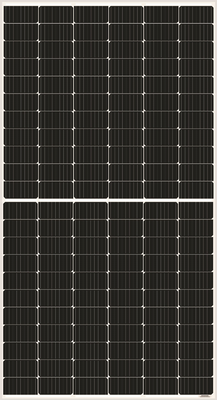

3, MN-HC/BF 415-695W


Video

KEY FEATURE

副标题

◆ N Type TOPCon Technology Modules with Highest Efficiency Cell

◆ Bifacial Module with Dual Glass,Dual-sided Power Generation

◆ Low Iron Tempered Solar Glass

◆ Schottky Type Bypass Diode

◆ Multi-contact Connectors, Watertight Terminal Box

◆ Clear Anodized Aluminum Frame

◆ Tedlar (TPT) Back Sheet

◆ EVA Sheet of Double Side

◆ TUV, CE Certificated

◆ Excellent anti-LeTID & anti-PID performance

◆ Low power degradation, high energy yield

◆ High salt mist and ammonia resistance

◆ Allowable Hail Load up to 5400Pa; Maximum Load Capacity 2400Pa

| TECHNICAL SPECIFICATIONS

General Specifications

Temperature Coefficients of Isc (%)℃	0.052	Allowable Hail Load	5400Pa.
Temperature Coefficients of Voc (%)℃	-0.29	Junction Box Type	IP68, 3 diodes
Temperature Coefficients of Pmax (%)℃	-0.38	Front Cover	3.2mm (0.13inches) tempered glass with AR coating
Nominal Operating Cell Temperature (NOCT)	45±2°C	Cable & Connector Type	4mm² (0.006inches²), 300mm (11.81inches) in length; MC4 or MC4 compatible
Operating Module Temperature	-40°C to +85°C	Backing (Brand Type)	TPT
Power Tolerance	±3%	Standard Test Conditions	1000W/m², Cell temperature 25°C, AM1.5;
Surface Maximum Load Capacity	2400Pa	Frame	Anodized aluminum alloy

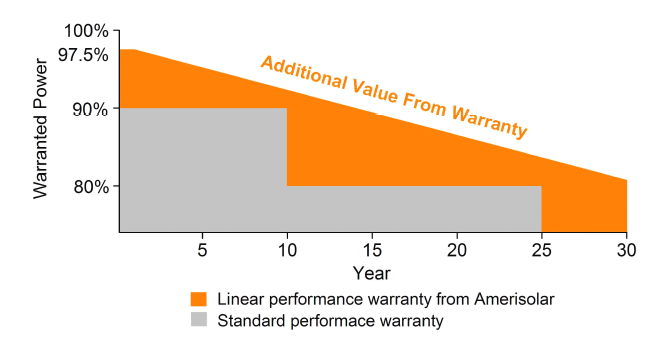

Warranty	20 years product warranty,30 years linear power output warranty

Technical Specifications

The following are the conventional model only,it's welcome to design based on customer requirement.

MODE	Power (w)	Size of cells (mm)	Number of cells (pcs)	Module efficiency	Max Power Current (A) (IMP, Amp)	Max Power Voltage (V) (VMP, Vdc)	Short Circuit Current (A) (ISC, Amp)	Open Circuit Voltage (V) (VOC, Vdc)	Cable with Connector (Meter)		Max system Voltage (VDC)	Module size (mm)	Weight (Kg)	Rated Fuse (Amp)
7M108N-HC415BF	415	182*91	692	21.25%	13.20	31.44	13.97	37.83	4mm², Length: Portrait: 300mm; Landscape: 1200mm	MC4	1500	17221134 30	24.5	25A
7M108N-HC420BF	420			21.51%	13.28	31.63	14.05	38.02
7M108N-HC425BF	425			21.75%	13.36	31.81	14.13	38.21
7M108N-HC430BF	430			22.02%	13.44	31.99	14.21	38.40
7M108N-HC435BF	435			22.28%	13.53	32.16	14.34	38.59
7M108N-HC440BF	440			22.53%	13.62	32.31	14.44	38.78
7M120N-HC465BF	465		6102	21.54%	13.31	34.94	14.08	42.13				19041134 30	26.8
7M120N-HC470BF	470			21.77%	13.37	35.15	14.14	42.32
7M120N-HC475BF	475			22.00%	13.43	35.37	14.20	42.51
7M120N-HC480BF	480			22.23%	13.49	35.58	14.26	42.70
7M120N-HC485BF	485			22.46%	13.55	35.79	14.32	42.89
7M120N-HC490BF	490			22.69%	13.62	35.97	14.43	43.08
7M132N-HC515BF	515		6112	21.69%	13.33	38.63	14.10	46.50	4mm², Length: Portrait: 300mm; Landscape: 1300mm			20941134 30	29.5
7M132N-HC520BF	520			21.90%	13.39	38.83	14.16	46.69
7M132N-HC525BF	525			22.11%	13.45	39.03	14.22	46.88
7M132N-HC530BF	530			22.32%	13.51	39.23	14.29	47.07
7M132N-HC535BF	535			22.53%	13.57	39.43	14.35	47.26
7M144N-HC560BF	560		6122	21.67%	13.28	42.17	14.06	50.63				22791134 30	32
7M144N-HC565BF	565			21.86%	13.34	42.35	14.12	50.83
7M144N-HC570BF	570			22.06%	13.41	42.51	14.18	51.03
7M144N-HC575BF	575			22.25%	13.47	42.69	14.24	51.23
7M144N-HC580BF	580			22.44%	13.53	42.87	14.30	51.43
7M144N-HC585BF	585			22.64%	13.59	43.05	14.36	51.63
8M120N-HC615BF	615	210*105	6102	21.73%	17.62	34.90	18.67	42.16				21721303 30	35	30A
8M120N-HC620BF	620			21.91%	17.66	35.11	18.72	42.35
8M120N-HC625BF	625			22.84%	17.70	35.31	18.77	42.54
8M120N-HC630BF	630			22.26%	17.74	35.51	18.82	42.73
8M132N-HC675BF	675		6112	21.73%	17.60	38.35	18.64	46.31	4mm², Length: Portrait: 300mm; Landscape: 1400mm			23841303 30	38.5
8M132N-HC680BF	680			21.89%	17.64	38.55	18.69	46.50
8M132N-HC685BF	685			27.36%	17.68	38.74	18.74	46.69
8M132N-HC690BF	690			22.21%	17.72	38.94	18.79	46.88
8M132N-HC695BF	695			23.37%	17.76	39.13	18.84	47.07
