2, MN-HC 415-695W


Video

KEY FEATURE

副标题

◆ N Type TOPCon Technology Modules with Highest Efficiency Cell

◆ Low Iron Tempered Solar Glass

◆ Schottky Type Bypass Diode

◆ Multi-contact Connectors, Watertight Terminal Box

◆ Clear Anodized Aluminum Frame

◆ Tedlar (TPT) Back Sheet

◆ EVA Sheet of Double Side

◆ TUV, CE Certificated

◆ Excellent anti-LeTID & anti-PID performance

◆ Low power degradation, high energy yield

◆ High salt mist and ammonia resistance

◆ Allowable Hail Load up to 5400Pa; Maximum Load Capacity 2400Pa

| TECHNICAL SPECIFICATIONS

General Specifications

Temperature Coefficients of Isc (%)℃	0.052	Allowable Hail Load	5400Pa.
Temperature Coefficients of Voc (%)℃	-0.29	Junction Box Type	IP68, 3 diodes
Temperature Coefficients of Pmax (%)℃	-0.38	Front Cover	3.2mm (0.13inches) tempered glass with AR coating
Nominal Operating Cell Temperature (NOCT)	45±2°C	Cable & Connector Type	4mm² (0.006inches²), 300mm (11.81inches) in length; MC4 or MC4 compatible
Operating Module Temperature	- 40°C to +85°C	Backing (Brand Type)	TPT
Power Tolerance	±3%	Standard Test Conditions	1000W/m2, Cell temperature 25°C, AM1.5;
Surface Maximum Load Capacity	2400Pa	Frame	Anodized aluminum alloy

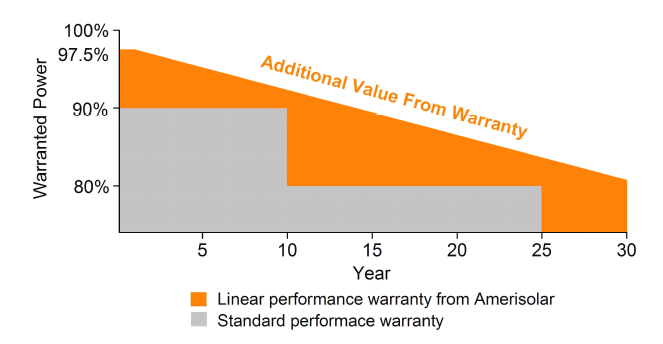

Warranty	20 years product warranty, 30 years linear power output warranty

Technical Specifications

The following are the conventional model only,it's welcome to design based on customer requirement

MODE	Power (w)	Size of cells (mm)	Number of cells (pcs)	Module efficiency	Max Power Current (A) (IMP, Amp)	Max Power Voltage (V) (VMP, Vdc)	Short Circuit Current (A) (ISC, Amp)	Open Circuit Voltage (V) (VOC, Vdc)	Cable with Connector (Meter)		Max system Voltage (VDC)	Module size (mm)	Weight (Kg)	Rated Fuse (Amp)
7M108N-HC415	415	182*91	692	21.25%	13.20	31.44	13.97	37.83	4mm², Length: Portrait: 300mm; Landscape:1200mm	MC4	1500V	1722113430	21	25A
7M108N-HC420	420			21.51%	13.28	31.63	14.05	38.02
7M108N-HC425	425			21.75%	13.36	31.81	14.13	38.21
7M108N-HC430	430			22.02%	13.44	31.99	14.21	38.40
7M108N-HC435	435			22.28%	13.53	32.16	14.34	38.59
7M108N-HC440	440			22.53%	13.62	32.31	14.44	38.78
7M144N-HC560	560	182*91	6122	21.67%	13.28	42.17	14.06	50.63	4mm², Length: Portrait: 300mm; Landscape:1300mm			2279113430	28	25A
7M144N-HC565	565			21.86%	13.34	42.35	14.12	50.83
7M144N-HC570	570			22.06%	13.41	42.51	14.18	51.03
7M144N-HC575	575			22.25%	13.47	42.69	14.24	51.23
7M144N-HC580	580			22.44%	13.53	42.87	14.30	51.43
7M144N-HC585	585			22.64%	13.59	43.05	14.36	51.63
8M120N-HC615	615	210*105	6102	21.73%	17.62	34.90	18.67	42.16				2172130335	31.5	30A
8M120N-HC620	620			21.91%	17.66	35.11	18.72	42.35
8M120N-HC625	625			22.84%	17.70	35.31	18.77	42.54
8M120N-HC630	630			22.26%	17.74	35.51	18.82	42.73
8M132N-HC675	675	210*105	6112	21.73%	17.60	38.35	18.64	46.31	4mm², Length: Portrait: 300mm; Landscape: 1400mm			2384130335	34	30A
8M132N-HC680	680			21.89%	17.64	38.55	18.69	46.50
8M132N-HC685	685			27.36%	17.68	38.74	18.74	46.69
8M132N-HC690	690			22.21%	17.72	38.94	18.79	46.88
8M132N-HC695	695			23.37%	17.76	39.13	18.84	47.07
