1, GYM-H 20-360W
|
|
|
|
Picture Video |

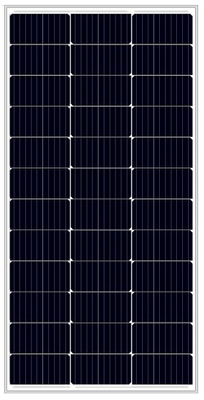

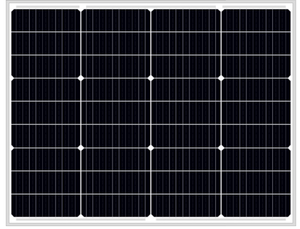

◆ Mono-crystalline Modules with Highest Efficiency Cell
◆ Low iron tempered solar glass
◆ Schottky type bypass diode
◆ Multi-contact connectors, watertight terminal box
◆ Clear anodized aluminum frame
◆ Tedlar (TPT) back sheet
◆ EVA sheet of double side
◆ TUV, CE Certificated
| TECHNICAL SPECIFICATIONS
General Specifications
| Temperature Coefficients of Isc (%)℃ | +0.048% | Allowable Hail Load | 5400Pa. |
Temperature Coefficients of Voc (%)℃ | -0.270% | Junction Box Type | IP65/IP67 |
Temperature Coefficients of Pmax (%)℃ | -0.350% | Front Cover | 3.2mm high transmission,low iron,tempered glass |
Nominal Operating Cell Temperature (NOCT) | 45±2°C | Backing (Brand Type) | TPT |
Operating Module Temperature | - 40°C to+85°C | Standard Test Conditions | irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C |
Power Tolerance | 0～+3% | Frame | Anodized aluminum alloy |

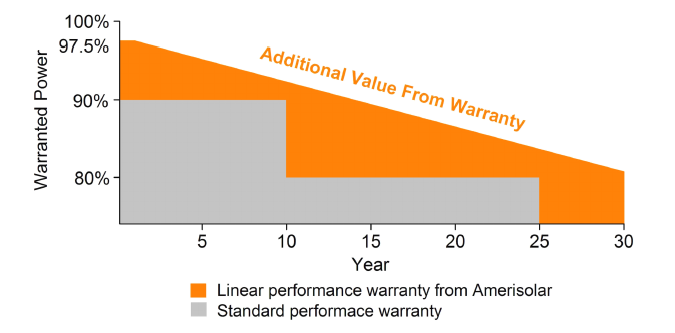

Surface Maximum Load Capacity | 2400Pa | Warranty | 20 years product warranty, 30 years linear power output warranty |
Technical Specifications
The following are the conventional model only, it's welcome to design based on customer requirement.
MODE | Power (w) | Cell size | Cell number (pcs) | Module efficiency | Max Power Current(A) (IMP,Amp) | Max Power Voltage(V) (VMP,Vdc) | Short Circuit Current(A) (ISC,Amp) | Open Circuit Voltage(V) (VOC,Vdc) | Cable with Connector (Meter) | Max | Module size (mm) | Weight (Kg) | Rated | |
GYM20 -18H | 20 | 182*30.3 | 18 (2*9) | 14.71% | 2.10 | 9.53 | 2.24 | 11.12 | Without cables and connector | 1000V | 340*400 *25 | 1.5 | 5A | |
GYM25 -18H | 25 | 182*36.4 | 15.62% | 2.45 | 10.21 | 2.61 | 12.29 | 400*400 *25 | 1.8 | |||||
GYM30 -18H | 30 | 182*45.5 | 15.95% | 2.97 | 10.11 | 3.16 | 11.82 | 470*400 *25 | 2.0 | |||||
GYM35 -36H | 35 | 182*30.3 | 36 (2*18) | 13.88% | 1.89 | 18.56 | 2.01 | 21.66 | 630*400 *25 | 2.7 | ||||
GYM40 -36H | 40 | 15.87% | 2.10 | 19.06 | 2.24 | 22.24 | ||||||||
GYM45 -36H | 45 | 182*36.4 | 36 (3*12) | 15.21% | 2.39 | 18.83 | 2.55 | 21.95 | 510*580 *25 | 3.2 | ||||
GYM50 -36H | 50 | 16.90% | 2.56 | 19.56 | 2.72 | 22.82 | ||||||||
GYM55 -36H | 55 | 182*45.5 | 15.41% | 2.94 | 18.71 | 3.13 | 21.81 | 615*580 *25 | 3.8 | |||||
GYM60 -36H | 60 | 16.82% | 3.15 | 19.06 | 3.35 | 22.24 | 2.5mm² cable 50cm | MC4 | ||||||
GYM65 -36H | 65 | 210*42 | 17.02% | 3.49 | 18.63 | 3.72 | 22.07 | 570*670 *25 | 4.1 | |||||
GYM70 -36H | 70 | 18.32% | 3.47 | 20.18 | 3.69 | 23.65 | ||||||||
GYM75 -33H | 75 | 210*52.5 | 33 (3*11) | 17.49% | 4.27 | 17.57 | 4.55 | 20.59 | 640*670 *30 | 4.6 | 10A | |||
GYM80 -33H | 80 | 19.66% | 4.33 | 18.49 | 4.61 | 21.68 | ||||||||
GYM85 -36H | 85 | 182*60.66 | 36 (4*9) | 18.09% | 4.23 | 20.08 | 4.51 | 23.42 | 610*770 *30 | 4.9 | ||||
GYM90 -36H | 90 | 19.16% | 4.31 | 20.90 | 4.59 | 24.32 | ||||||||
GYM95 -30H | 95 | 210*70 | 30 (3*10) | 18.41% | 5.69 | 16.71 | 6.05 | 20.17 | 770*670 *30 | 5.5 | ||||
GYM100 -30H | 100 | 19.38% | 5.78 | 17.31 | 6.15 | 20.92 | ||||||||
GYM105 -33H | 105 | 33 (3*11) | 18.65% | 5.70 | 18.43 | 6.07 | 22.23 | 840*670 *30 | 6.0 | |||||
GYM110 -33H | 110 | 19.54% | 5.78 | 19.04 | 6.15 | 23.01 | ||||||||
GYM115 -36H | 115 | 36 (3*12) | 19.07% | 5.68 | 20.25 | 6.05 | 24.38 | 900*670 *30 | 6.5 | |||||
GYM120 -36H | 120 | 19.90% | 5.78 | 20.77 | 6.15 | 25.10 | ||||||||
GYM125 -36H | 125 | 182*91 | 36 (3*12) | 18.42% | 6.39 | 19.56 | 6.81 | 22.82 | 1170*580 *30 | 7.1 | ||||
GYM130 -36H | 130 | 19.15% | 6.37 | 20.41 | 6.78 | 23.75 | ||||||||
GYM135 -36H | 135 | 19.89% | 6.46 | 20.90 | 6.88 | 24.32 | ||||||||
GYM140 -30H | 140 | 210*105 | 30 (3*10) | 18.65% | 8.33 | 16.81 | 8.87 | 20.32 | 1120*670 *30 | 8.0 | 15A | |||
GYM145 -30H | 145 | 19.32% | 8.50 | 17.06 | 9.05 | 20.62 | ||||||||
GYM150 -30H | 150 | 19.99% | 8.67 | 17.31 | 9.23 | 20.92 | ||||||||
GYM155 -36H | 155 | 36 (3*12) | 17.45% | 7.90 | 19.62 | 8.41 | 23.40 | 1325*670 *30 | 9.4 | |||||
GYM160 -36H | 160 | 18.02% | 8.07 | 19.84 | 8.59 | 23.73 | ||||||||
GYM165 -36H | 165 | 18.58% | 8.23 | 20.05 | 8.76 | 24.07 | ||||||||
GYM170 -36H | 170 | 19.14% | 8.39 | 20.27 | 8.93 | 24.41 | ||||||||
GYM175 -36H | 175 | 19.71% | 8.54 | 20.50 | 9.09 | 24.75 | ||||||||
GYM180 -39H | 180 | 39 (3*13) | 18.15% | 8.46 | 21.28 | 9.01 | 25.23 | 1480*670 *30 | 10.5 | |||||
GYM185 -39H | 185 | 18.65% | 8.58 | 21.57 | 9.13 | 25.43 | ||||||||
GYM190 -39H | 190 | 19.16% | 8.70 | 21.86 | 9.19 | 25.62 | ||||||||
GYM195 -39H | 195 | 19.66% | 8.80 | 22.16 | 9.30 | 25.96 | ||||||||
GYM200 -39H | 200 | 20.16% | 8.91 | 22.45 | 9.41 | 26.29 | ||||||||
GYM240 -68H | 240 | 182*91 | 68 (4*17) | 19.12% | 6.30 | 38.12 | 6.71 | 44.46 | 4mm² cable 90cm | 1630*770 *30 | 13.5 | 10A | ||
GYM245 -68H | 245 | 19.52% | 6.35 | 38.57 | 6.76 | 44.95 | ||||||||
GYM250 -68H | 250 | 19.91% | 6.41 | 39.02 | 6.82 | 45.45 | ||||||||
GYM255 -68H | 255 | 20.32% | 6.46 | 39.48 | 6.88 | 45.95 | ||||||||
GYM290 -60H | 290 | 210*105 | 60 (4*15) | 19.91% | 8.50 | 34.12 | 9.05 | 41.24 | 1650*880 *30 | 15.5 | 15A | |||
GYM295 -60H | 295 | 20.31% | 8.60 | 34.32 | 9.15 | 41.53 | ||||||||
GYM300 -60H | 300 | 20.66% | 8.69 | 34.53 | 9.25 | 41.83 | ||||||||
GYM320 -68H | 320 | 68 (4*17) | 19.44% | 8.36 | 38.26 | 8.91 | 46.10 | 1870*880 *35 | 17.5 | |||||
GYM325 -68H | 325 | 19.75% | 8.45 | 38.47 | 9.00 | 46.43 | ||||||||
GYM330 -68H | 330 | 20.05% | 8.53 | 38.69 | 9.08 | 46.75 | ||||||||
GYM335 -68H | 335 | 20.35% | 8.61 | 38.91 | 9.17 | 47.08 | ||||||||
GYM340 -68H | 340 | 20.66% | 8.69 | 39.13 | 9.25 | 47.41 | ||||||||
GYM345 -72H | 345 | 72 (4*18) | 19.80% | 8.46 | 40.77 | 9.01 | 49.16 | 1980*880 *35 | 18.6 | |||||
GYM350 -72H | 350 | 20.08% | 8.54 | 40.99 | 9.09 | 49.50 | ||||||||
GYM355 -72H | 355 | 20.37% | 8.61 | 41.21 | 9.17 | 49.85 | ||||||||
GYM360 -72H | 360 | 20.66% | 8.69 | 41.43 | 9.25 | 50.20 | ||||||||

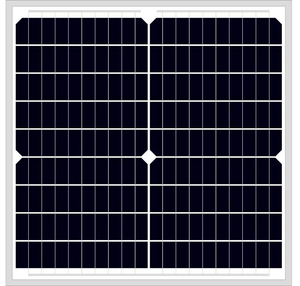

18(2*9) |

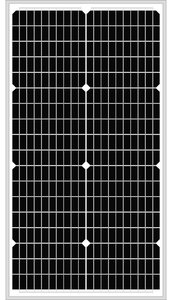

36(2*18) | ||

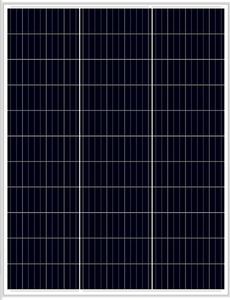

30(3*10) |

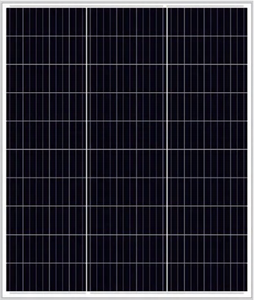

33(3*11) |
36(3*12) |

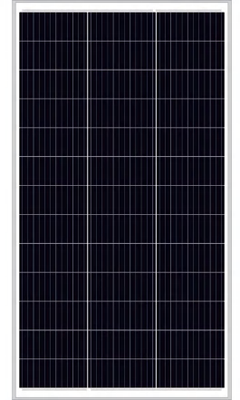

39(3*13) |
36(4*9) |

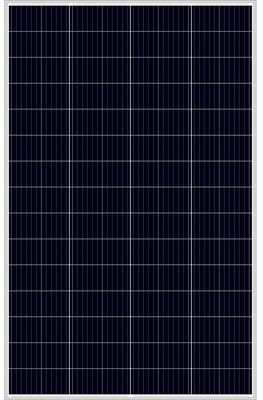

60(4*15) |

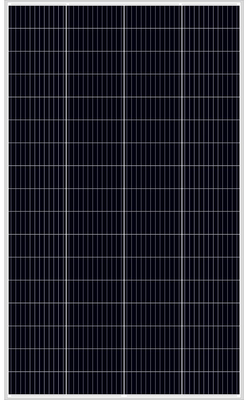

68(4*17) |

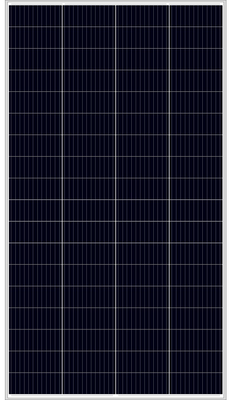

72(4*18) |
|
|
